Shift mechanism function unit, manual release, assembly overview

WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2 .

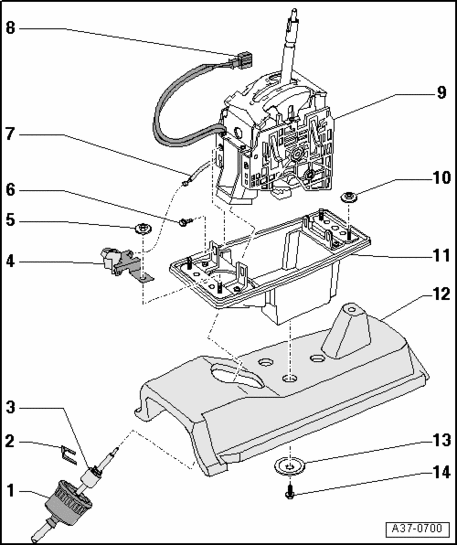

Fig 1: Shift Mechanism Function Unit, Manual Release, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Selector lever cable rubber boot

Check whether selector lever cable rubber boot is engaged correctly on shift unit and sealed well

2 - Securing plate

For selector lever cable to shift mechanism function unit
Installation position: Angled end faced upward

3 - Selector lever cable

Do not bend or kink
Lightly lubricate ball socket with polycarbamide grease G 052 142 A2 before installing.
Removing and installing → Selector lever cable, removing and installing
Adjusting → Selector lever cable, checking and adjusting

In case of damaged rubber boot, selector lever cable must be replaced
Do not installed rubber boot twisted

4 - Bracket

With rocker switch for manual release

5 - 8 Nm

6 - 3.5 Nm

7 - Manual release actuator cable

Removing and installing → Actuator mechanism for manual release, removing and installing

8 - Electrical connector

For Shift Lock Solenoid N110 and Transmission Park Selector Switch F305

9 - Selector mechanism function unit

With Shift Lock Solenoid N110 and Transmission Park Selector Switch F305
Can only be replaced as complete unit
Removing and installing → Shift mechanism function unit, removing and installing

10 - 8 Nm

11 - Selector mechanism shift unit

With bonded-on gasket

12 - Noise insulation

13 - Lock washer

For noise insulation to shift mechanism
Replace

14 - 1.5 Nm
