Selector lever cable, removing and installing

WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Pry Lever 80-200

GW00003655

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pry Lever - Rmv Outside Mirror 80-200

Removing

Remove selector lever handle → Selector lever handle, removing and installing .
Remove cover for shift mechanism → Selector mechanism cover, removing and installing .

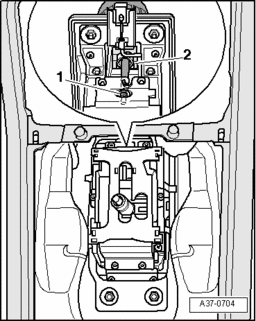

Fig 2: Selector Lever Cable Locking Bolt & Securing Clip

GW00029385

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen selector lever cable locking bolt - 1 - with Torx 25 socket approx. 1 turn, do not remove completely.
Pry out securing clip - 2 - with a screwdriver.

Fig 3: Shift Mechanism Heat Shield Nuts

GW00029383

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove nuts - arrows - and slide shift mechanism heat shield back.

NOTE:

Shown with drive shaft removed to provide a better illustration.

Fig 4: Removing Sound Insulation Bolts & Lock Washers

GW00029384

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - 1 - , if present.
Pry out lock washers - 2 -.
Pull sound insulation down slightly.

NOTE:

Shown with drive shaft removed to provide a better illustration.

Fig 5: Selector Lever Cable & Shift Mechanism Rubber Cap

GW00029386

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove rubber cap - 2 - from shift mechanism.
Remove selector lever cable securing clip loosened from above.
Remove selector lever cable - 1 - downward out of shift unit.

NOTE:

Do not bend or kink selector lever cable.

Fig 6: Selector Lever Cable Ball Socket, Securing Plate & Bolt

GW00029387

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press ball socket - 1 - of the selector lever cable off from selector shaft lever using Pry Lever - Rmv Outside Mirror 80-200.
Unclip securing plate - 2 - at selector lever cable mounting bracket.
If present, remove bolt - 3 - and remove selector lever cable.

Installing

Installation is in reverse order of removal, note the following:

NOTE:

Do not bend or kink the selector lever cable.
Lightly grease ball socket of selector lever cable with polycarbamide grease G 052 142 A2 before installing.

Adjust selector lever cable → Selector lever cable, checking and adjusting .
