Front bumper, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list pertains to Fig 1.

Socket head bolt
- 26 Nm
Air intake grille
Quick release screw
Side impact molding
- Always replace
  - Side impact moldings are secured to bumper with double-sided adhesive tape.
  - It is not possible to remove without destroying.
  - To remove, pull side impact molding away from bumper.
  - Remove any residual adhesive on bumper.
    Installation on same bumper
  - Bumper must be free of dust and grease in adhesion area
  - Clean bumper using mineral spirits or cleaning solution D 009 401 04.
    NOTE: Centering holes for centering pins for the exact installation of side impact moldings are already present in bumper
  - Position centering pins with double-sided adhesive tape onto markings of side impact molding. See ADHERING CENTERING PINS ON SIDE IMPACT MOLDING .
  - Remove protective foil from double-sided adhesive tape for side impact molding.
  - Press side impact molding with attached centering pins firmly onto bumper over the entire surface.
    Installation on new bumper

    NOTE: Centering holes for side impact molding must be drilled on the new bumper before painting.
  - Position centering holes for side impact moldings on bumper, see SIDE IMPACT MOLDINGS, CENTERING HOLES .
  - Apply side impact moldings to bumper as described above.
Bumper
- With crossmember attached
- Bumper, removing and installing, see FRONT BUMPER, REMOVING AND INSTALLING .
- Crossmember, removing and installing, see CROSSMEMBER, REMOVING FROM BUMPER COVER AND INSTALLING
- Separate two-piece bumper cover, see CROSSMEMBER, REMOVING FROM BUMPER COVER AND INSTALLING
- Positioning license plate mounting holes, see POSITIONING LICENSE PLATE MOUNTING HOLES
Guide piece
- Removing and installing, see GUIDE PIECE, REMOVING AND INSTALLING
Expanding clip
- 6x
- Must be inserted into fender before installing bumper cover
Grommet
- 2x
- Must be inserted into fender before installing bumper cover
Impact absorber
- Self-aligns to correct height in crossmember, see BUMPER TO IMPACT ABSORBER, ASSEMBLY OVERVIEW
Fender
Special nut
- 4 Nm
Wheelhousing liner
Bolt
- 1 Nm
- 2x

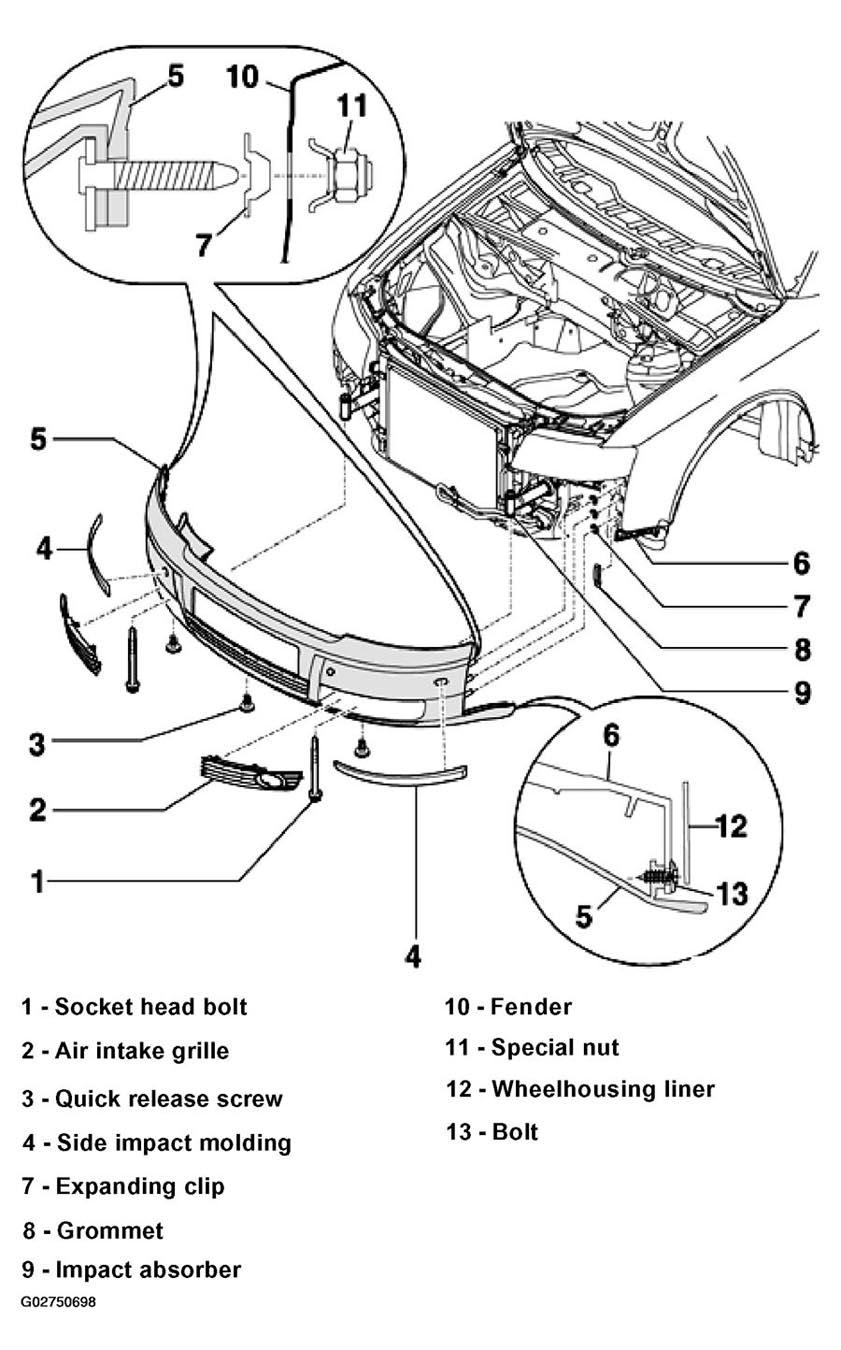

Fig 1: Identifying Front Bumper Assembly

Courtesy of AUDI OF AMERICA, INC.
