Adhering centering pins on side impact molding

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Adhesive and centering pin are in delivery casing of side impact molding.

Remove protective foil from the double-sided adhesive -3- and adhere it onto centering pin -4-.
Remove second protective foil and position centering pin onto marking -arrow- on side impact molding.
Remove protective foils from double-sided adhesive strips -2- and press side impact molding -1- onto bumper.

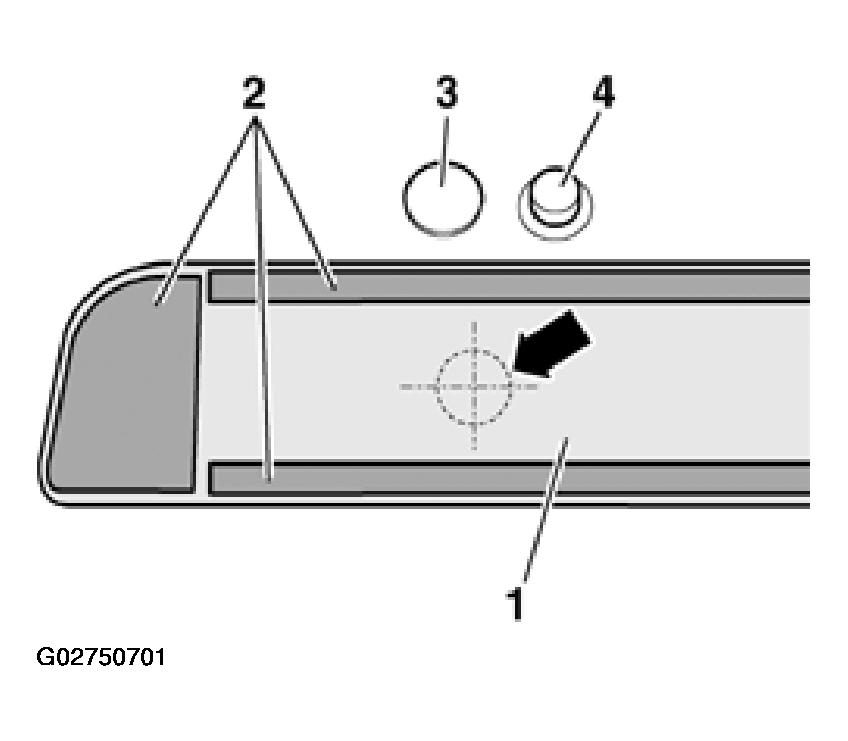

Fig 1: Adhering Centering Pins On Side Impact Molding

Courtesy of AUDI OF AMERICA, INC.
