Positioning license plate mounting holes
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
There are four centering punch marks on license plate area of bumper cover which must be drilled through for securing a license plate (dimensions 115 x 520 mm).
If centering punch marks are not visible, proceed as follows:

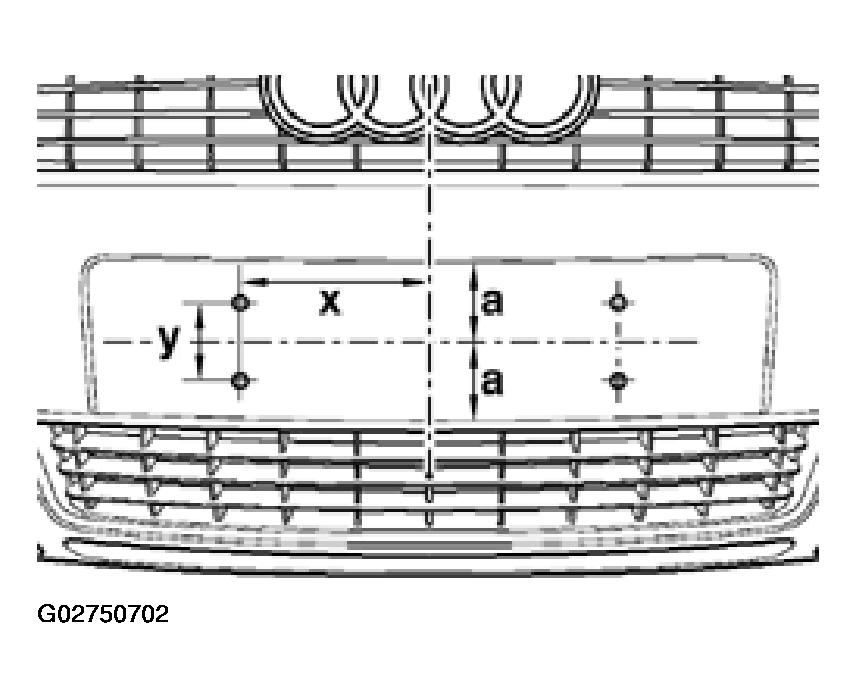

- Determine vertical bisecting line from Audi emblem to center of grill on bumper.
- Determine horizontal bisecting line:
- Dimension -a- = dimension -a- (divide measurement of license plate area by 2 to determine dimension -a-.
- Determine mounting points for license plate symmetrically as follows:
- Dimension -x- = 139 mm
- Dimension -y- = 62 mm
