Guide piece, removing and installing
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

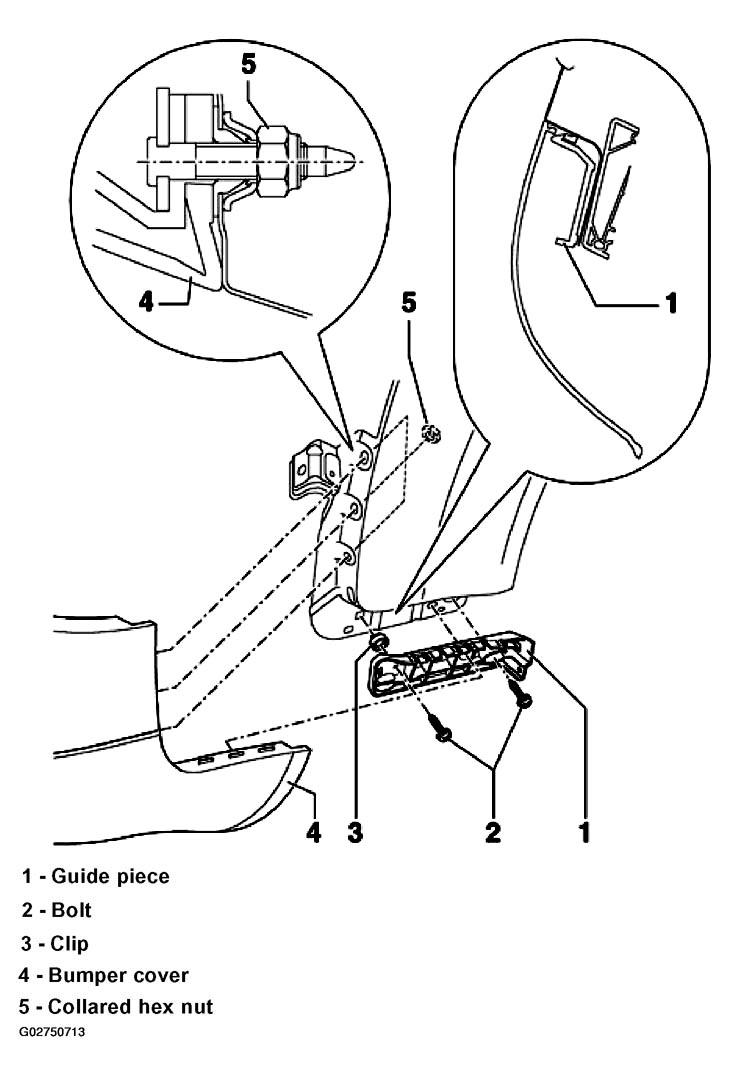

The following list pertains to Fig 1.
- Guide piece
- Bumper removed.
- Remove bolts -2-.
- Bolt
- 1.5 Nm
- Clip
- Bumper cover
- Removing, see TWO-PIECE BUMPER COVER, SEPARATING
- On installation bumper cover must engage cleanly in guide piece -1-
- Collared hex nut
- 4 Nm
- Only accessible after front half of wheel housing lining has been unfastened. See FRONT WHEEL HOUSING LINER, ASSEMBLY OVERVIEW .
