SRS Floor Wire Harness

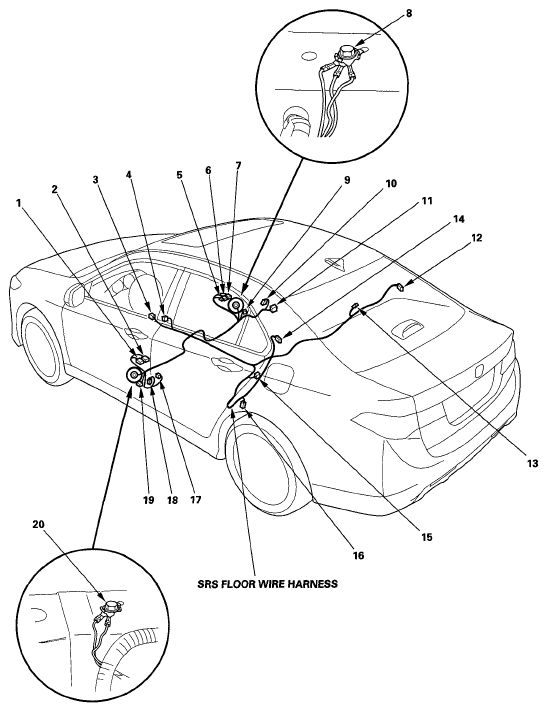

SRS FLOOR WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Driver's seat belt tensioner | 17 | 4 | Left B-pillar | ||
| Driver's side airbag inflator | 2 | 2 | Under driver's seat | ||
| Front passenger's seat belt tensioner | 11 | 4 | Right B-pillar | ||
| Front passenger's side airbag inflator | 7 | 2 | Under front passenger's seat | ||
| Left side curtain airbag inflator | 14 | 2 | Left C-pillar | ||
| Left side impact sensor (first) | 18 | 2 | Left B-pillar | ||
| Left side impact sensor (second) | 16 | 2 | Left C-pillar | ||
| Right safing sensor | 15 | 4 | Under rear seat cushion | ||
| Right side curtain airbag inflator | 12 | 2 | Right C-pillar | ||
| Right side impact sensor (first) | 10 | 2 | Right B-pillar | ||
| Right side impact sensor (second) | 13 | 2 | Right C-pillar | ||
| SRS unit | 3 | 39 | Under middle of dash | Audio wire harness (with navigation system) (see AUDIO WIRE HARNESS (WITH NAVIGATION SYSTEM) ) | |
| C403 | 4 | 16 | Under middle of dash | Audio wire harness (without navigation system) (see AUDIO WIRE HARNESS (WITHOUT NAVIGATION SYSTEM) ) | |
| C603 | 19 | 2 | Under driver's seat | Left side wire harness (see LEFT SIDE WIRE HARNESS ) | |
| C653 | 9 | 4 | Under front passenger's seat | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) | |
| C701 | 1 | 23 | Under driver's seat | Driver's seat wire harness (with DPMS) (see DRIVER'S SEAT WIRE HARNESS (WITH DPMS) ), (without DPMS) (see DRIVER'S SEAT WIRE HARNESS (WITHOUT DPMS) ) | |
| C702 | 6 | 18 | Under front passenger's seat | Front passenger's seat wire harness (see FRONT PASSENGER'S SEAT WIRE HARNESS ) | |
| C703 | 5 | 18 | Under front passenger's seat | ODS unit harness (see ODS UNIT HARNESS ) | |
| G701 | 20 | Under driver's seat | Body ground, via SRS floor wire harness | ||
| G702 | 8 | Under front passenger's seat | Body ground, via SRS floor wire harness |
