Audio Wire Harness (With Navigation System)

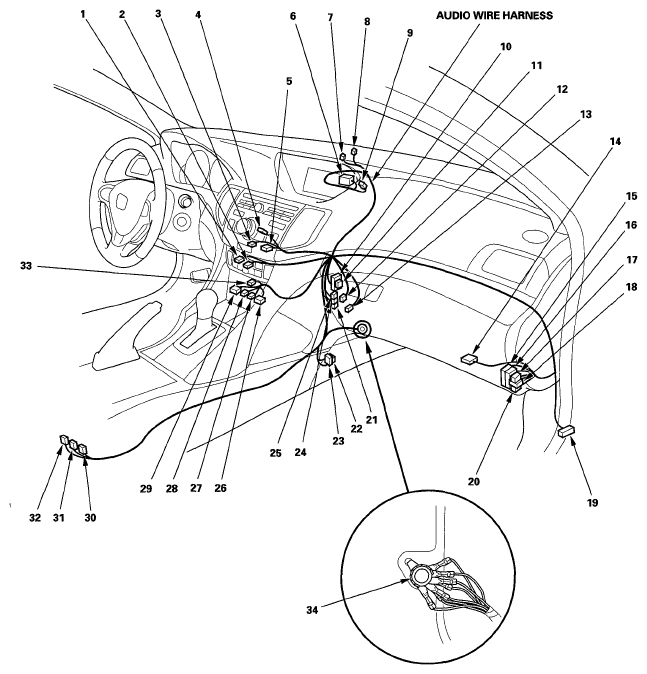

AUDIO WIRE HARNESS (WITH NAVIGATION SYSTEM) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Audio unit connector A | 29 | 24 | Under middle of dash | ||
| Audio unit connector B | 28 | 20 | Under middle of dash | ||
| Audio unit connector C | 27 | 12 | Under middle of dash | ||
| Audio unit connector D | 33 | 8 | Under middle of dash | ||
| Audio unit connector E | 26 | 14 | Under middle of dash | ||
| Audio/Navigation switch panel | 5 | 24 | Middle of dash | ||
| Automatic lighting/sunlight sensor | 8 | 5 | Middle of dash | ||
| Auxiliary jack | 30 | 5 | Under center console | ||
| Center speaker | 7 | 2 | Middle of dash | ||
| Climate control unit connector A | 2 | 28 | Middle of dash | ||
| Climate control unit connector B | 1 | 12 | Middle of dash | ||
| Console accessory power socket | 32 | 2 | Under center console | ||
| Glove box light | 13 | 2 | Glove box | ||
| HandsFreeLink control unit | 14 | 28 | Under right of dash | ||
| Hazard warning switch | 3 | 5 | Middle of dash | ||
| Interface dial | 4 | 5 | Middle of dash | ||
| Navigation display unit | 6 | 28 | Middle of dash | ||
| Passenger's airbag cutoff indicator | 9 | 6 | Middle of dash | ||
| Passenger's under-dash fuse/relay box connector D (see PASSENGER'S UNDER-DASH FUSE/RELAY BOX ) | 19 | 28 | Under right side of dash | ||
| Trunk lid opener main switch | 12 | 2 | Under right of dash | ||
| USB adaptor unit | 31 | 14 | Under center console | ||
| C401 | 10 | 28 | Middle of dash | Dashboard wire harness (View of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |
| C402 | 11 | 16 | Middle of dash | Dashboard wire harness (View of middle to passenger's side) (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) | |
| C403 | 22 | 16 | Middle of dash | SRS floor wire harness (see SRS FLOOR WIRE HARNESS ) | |
| C404 (junction connector) | 25 | 12 | Under middle of dash | ||
| C405 (junction connector) | 24 | 12 | Under middle of dash | ||
| C406 (junction connector) | 21 | 12 | Under middle of dash | ||
| C407 (junction connector) | 20 | 12 | Under right side of dash | ||
| C408 (junction connector) | 17 | 12 | Under right side of dash | ||
| C409 | 23 | 20 | Under middle of dash | A/C wire harness (see A/C WIRE HARNESS ) | |
| C410 | 16 | 28 | Under right side of dash | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) | |
| C411 | 15 | 34 | Under right side of dash | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) | |
| C412 | 18 | 18 | Under right side of dash | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) | |
| G401 | 34 | Under middle of dash | Body ground, via audio wire harness |
