ODS Unit Harness

ODS UNIT HARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Front passenger's seat weight sensor (inner side) 2 4 Front passenger's seat
Front passenger's seat weight sensor (outer side) 4 4 Front passenger's seat
ODS unit 1 5 Front passenger's seat
C703 3 18 Under front passenger's seat SRS floor wire harness (see SRS FLOOR WIRE HARNESS )

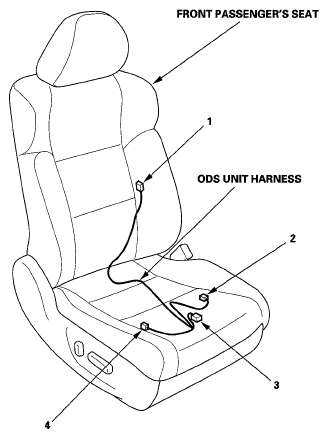

Fig 1: Identifying ODS Unit Harness Location
G05994842Courtesy of AMERICAN HONDA MOTOR CO., INC.
