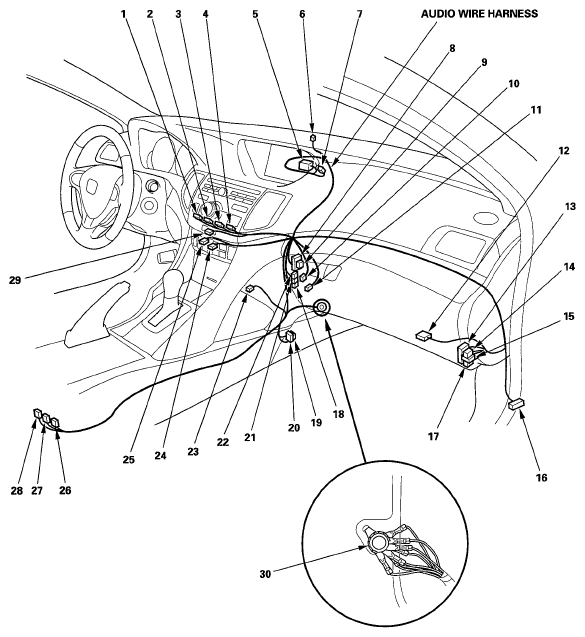

Audio Wire Harness (Without Navigation System)
AUDIO WIRE HARNESS (WITHOUT NAVIGATION SYSTEM) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Audio unit connector A |
1 |
24 |
Under middle of dash |
|
|
| Audio unit connector B |
2 |
20 |
Under middle of dash |
|
|
| Audio unit connector D |
3 |
8 |
Under middle of dash |
|
|
| Audio unit connector E |
4 |
14 |
Under middle of dash |
|
|
| Audio-HVAC display unit |
5 |
12 |
Middle of dash |
|
|
| Automatic lighting/sunlight sensor |
6 |
5 |
Middle of dash |
|
|
| Auxiliary jack |
26 |
5 |
Under center console |
|
|
| Center pocket light |
23 |
2 |
Middle of dash |
|
|
| Climate control switch connector A |
25 |
28 |
Middle of dash |
|
|
| Climate control switch connector B |
24 |
12 |
Middle of dash |
|
|
| Console accessory power socket |
27 |
2 |
Under center console |
|
|
| Glove box light |
11 |
2 |
Glove box |
|
|
| HandsFreeLink control unit |
12 |
28 |
Under right of dash |
|
|
| Hazard warning switch |
29 |
5 |
Middle of dash |
|
|
| Passenger's airbag cutoff indicator |
7 |
6 |
Middle of dash |
|
|
| Passenger's under-dash fuse/relay box connector D (see
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
) |
16 |
28 |
Under right side of dash |
|
|
| Sunlight sensor |
6 |
2 |
Middle of dash |
|
|
| Trunk lid opener main switch |
10 |
2 |
Under right of dash |
|
|
| USB adaptor unit |
28 |
14 |
Under center console |
|
|
| C401 |
8 |
28 |
Middle of dash |
Dashboard wire harness (View of middle to passenger's side) (see
DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) |
|
| C402 |
9 |
16 |
Middle of dash |
Dashboard wire harness (View of middle to passenger's side) (see
DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) ) |
|
| C403 |
19 |
16 |
Middle of dash |
SRS floor wire harness (see
SRS FLOOR WIRE HARNESS ) |
|
| C404 (junction connector) |
22 |
12 |
|
|
|
| C405 (junction connector) |
21 |
12 |
Under middle of dash |
|
|
| C406 (junction connector) |
18 |
12 |
Under middle of dash |
|
|
| C407 (junction connector) |
17 |
12 |
Under middle of dash |
|
|
| C408 (junction connector) |
14 |
12 |
Under middle of dash |
|
|
| C409 |
20 |
20 |
Under right side of dash |
A/C wire harness (see
A/C WIRE HARNESS ) |
|
| C410 |
13 |
28 |
Under right side of dash |
Right side wire harness (see
RIGHT SIDE WIRE HARNESS ) |
|
| C411 |
15 |
34 |
Under right side of dash |
Right side wire harness (see
RIGHT SIDE WIRE HARNESS ) |
|
| C412 |
15 |
12 |
Under right side of dash |
Right side wire harness (see
RIGHT SIDE WIRE HARNESS ) |
|
| G401 |
30 |
|
Under middle of dash |
Body ground, via audio wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
