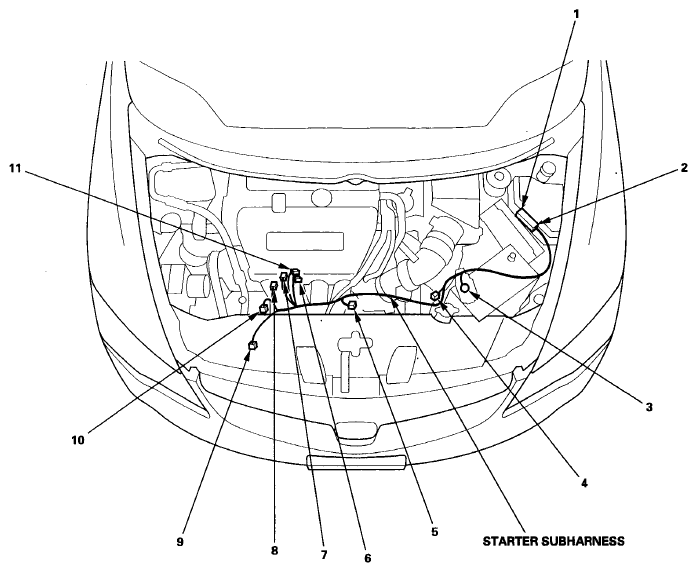

Starter Subharness
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| A/C compressor clutch | 9 | 3 | Middle of engine compartment | ||
| Alternator | 10 | 4 | Middle of engine compartment | ||
| Knock sensor | 7 | 1 | Middle of engine compartment | ||
| Starter solenoid | 6 | 1 | Middle of engine compartment | ||
| C102 | 4 | 1 | Middle of engine compartment | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) | |
| C106 | 5 | 10 | Middle of engine compartment | Engine wire harness
|
|
| (+) | 3 | Left side of engine compartment | Battery (+) terminal | ||
| T3 | 2 | Left side of engine compartment | Under-hood fuse/relay box (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | ||
| T4 | 11 | Middle of engine compartment | Starter motor | ||
| T101 | 1 | Left side of engine compartment | Under-hood fuse/relay box (see CONNECTOR TO FUSE/RELAY BOX INDEX ) | ||
| T102 | 8 | Middle of engine compartment | Alternator |
