A/C Wire Harness

WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Air mix control motor 1 7 Under left side of dash
Blower motor 8 2 Under right side of dash
Evaporator temperature sensor 4 2 Under middle of dash
Mode control motor 6 7 Behind glove box
Power transistor 3 4 Under right side of dash
Recirculation control motor 7 7 Behind glove box
C205 2 2 Under left side of dash Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)  )
C505 5 24 Behind left side of glove box Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE)  )

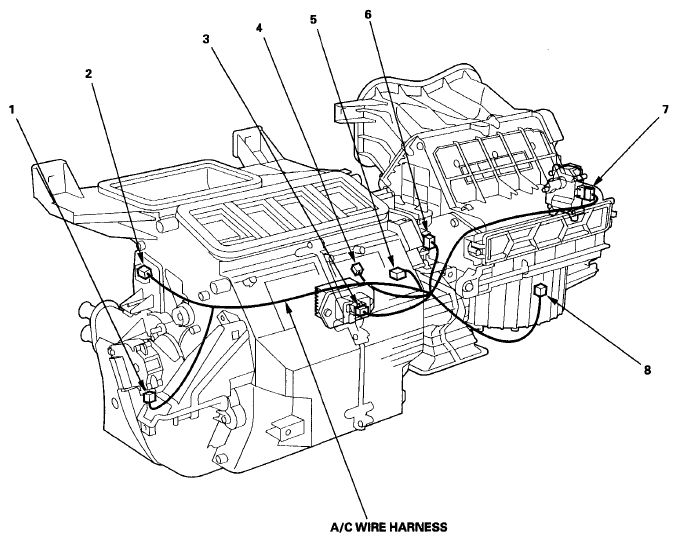

Fig 1: Identifying A/C Wire Harness Location
G06268766Courtesy of AMERICAN HONDA MOTOR CO., INC.
