Remove the Wheel Spindle
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

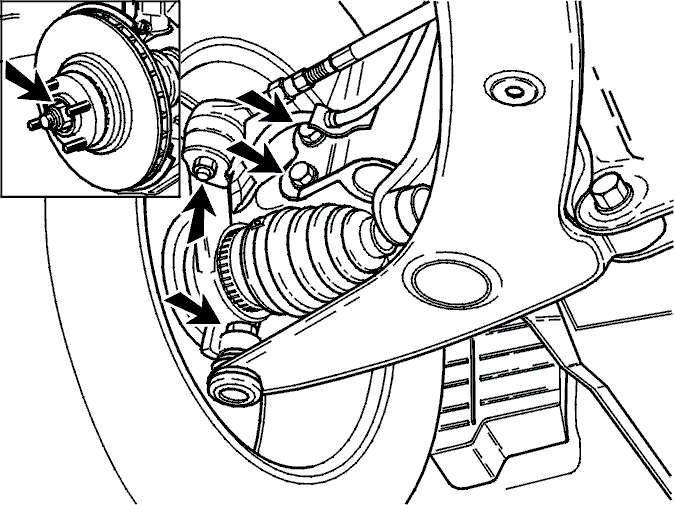

Remove:
- the drive shaft nut
- the tie rod ball joint. See Removing the Ball Joint For the Tie Rod
- slacken off the wheel spindle nut as much as possible
- the two wheel spindle screws.
Use a universal puller to withdraw the drive shaft from the wheel spindle. See Control Arm From Ball Joint, Removing .
Remove the nut from the ball joint.
WARNING:
Secure the tool by tying it into place to prevent damage.
Press out the ball joint. Use special tool 9995637 .
Remove the wheel spindle.
