Removing the Ball Joint For the Tie Rod

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

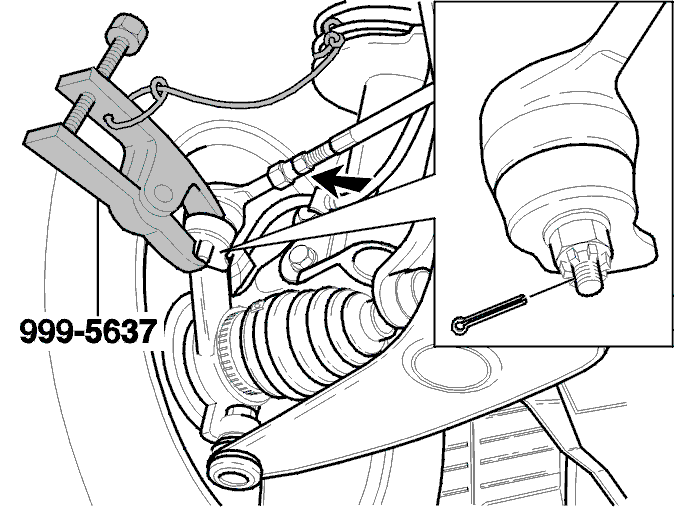

Fig 1: Removing Ball Joint For Tie Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the locknut for the tie rod.

Remove the pin and the castle nut (if applicable), or the lock nut for the ball joint for the tie rod.

Use special tool 9995637 .

WARNING: Tie the tool in place using the cord so that it cannot fall off and cause damage.

Press out the ball joint with the special tool.

Remove the ball joint from the tie rod (note the number of turns).
