Control Arm From Ball Joint, Removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

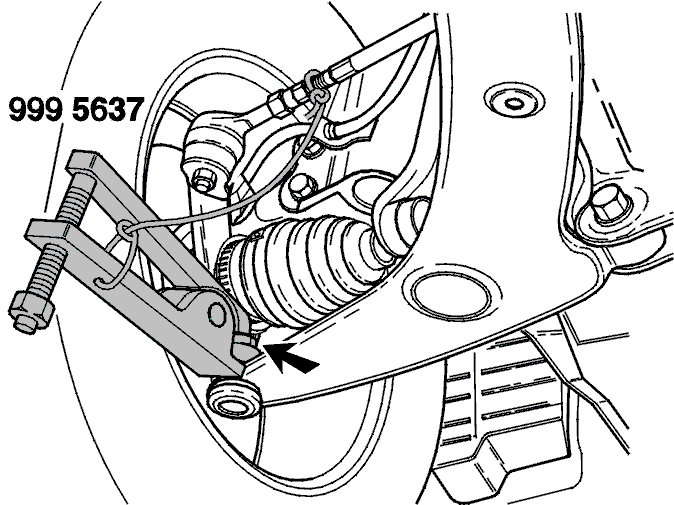

Fig 1: Control Arm From Ball Joint, Removing
GLL116331Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the nut positioned on the ball joint as much as possible.

Press the rubber down. Install the special tool 9995637 .

WARNING: Secure the tool to prevent damage.

Press out the ball joint.

Remove the nut and draw out the control arm.
