Removing cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Glass panel, see Removing/installing the glass panel .
- Electric motor, see Removing/installing motor .
NOTE:
The mechanism must be set to the ventilation setting.
- Remove wind deflector with the block holders (with locking arm), see Removing/installing sliding and tilting sun roof (glass panel) .

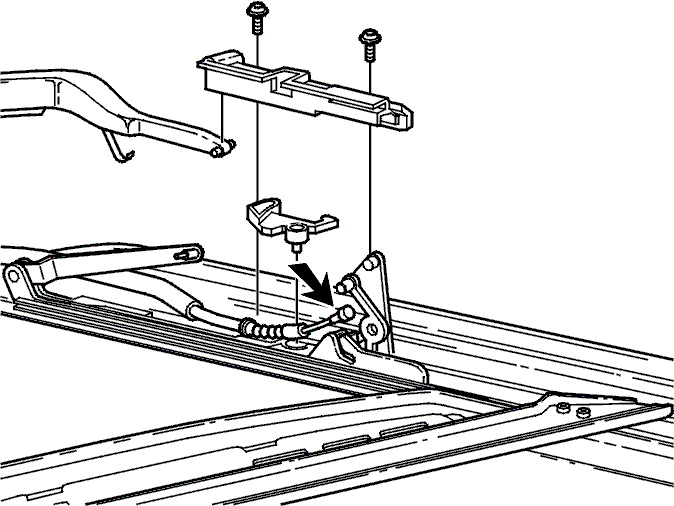

- Lift the cable out of the gripper.
- Pull the cable out of the cable guide sleeve.
NOTE:
Do not twist the cable guide sleeve.
