Removing/installing sliding and tilting sun roof (glass panel)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

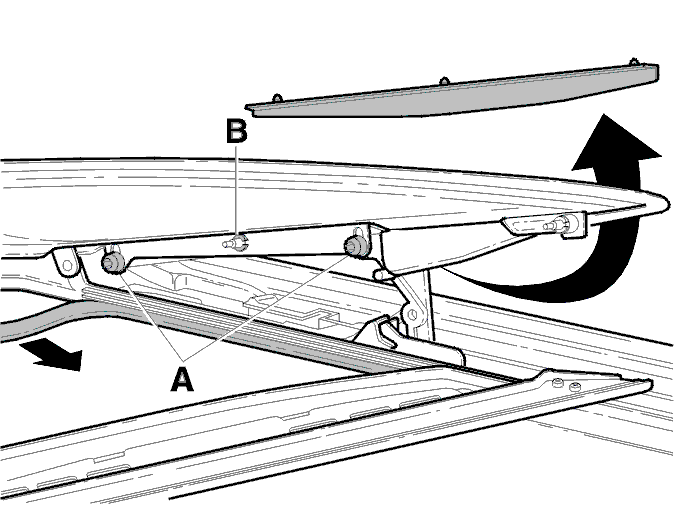

Fig 1: Removing/Installing Sliding Tilting Sun Roof (Glass Panel)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Model years before 2000: Remove the apron moldings on both sides.

Open the sun roof and set it to maximum tilt.

Slide back the apron molding and pull it out.

NOTE: If the apron molding rattles, do not reinstall it. Instead apply black paint to the two screws (A) and the pin (B). Do not remove the pin (B).
