Removing/installing the glass panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

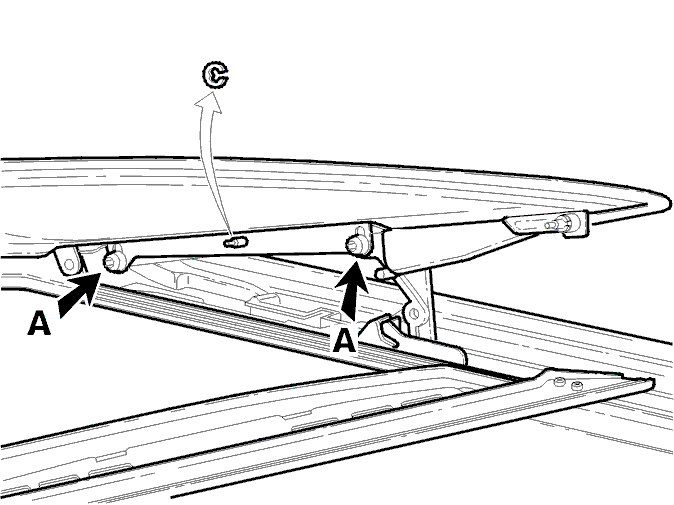

Fig 1: Removing/Installing Glass Panel

GLL116685

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

The two mounting screws (A), left and right
The spring clip for the front hinge screw, right and left
Lift the glass panel and press out the mountings for the guide rails at the rear and in the center
Remove the glass panel.

Install:

Position the glass panel
Position the mounting points for the front hinge. Install the spring clip on the left and right
Position the rear hinge. Finger tighten the screws (A).
