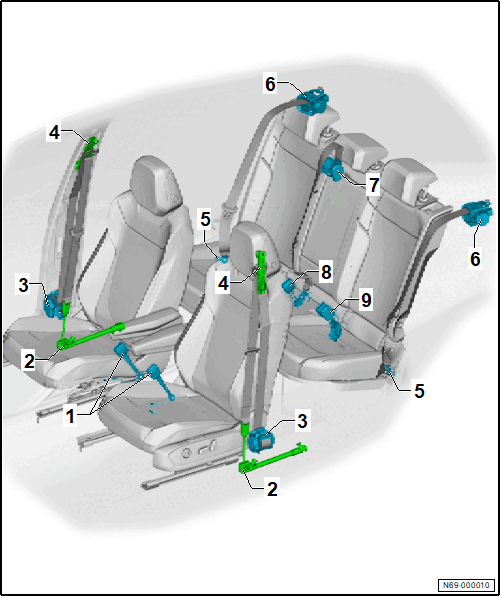

Component Location Overview - Seat Belts And Mounting Points
- Front Seat Belt Latches
- With Driver Seat Belt Switch - E24- or Front Passenger Seat Belt Switch - E25-
- Refer to Overview - Front Seat Belt Latch .
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Front Belt End Fitting
- With Driver Seat Belt Tensioner Igniter 2 -N297- or Front Passenger Seat Belt Tensioner Igniter 2 - N298-
- Refer to Overview - Front Three-Point Seat Belt .
- Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Front Three-Point Seat Belt
- Left Front Seat Belt - NX10- with Driver Seat Belt Tensioner Igniter 1 - N153- or Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Right Front Seat Belt - NX11- with Driver Seat Belt Tensioner Igniter 1 - N153- or Front Passenger Seat Belt Tensioner Igniter 1 -N154-
- Refer to Overview - Front Three-Point Seat Belt .
- Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Height Adjuster
- Outer Rear Belt End Fitting
- Outer Rear Three-Point Seat Belt
- With Driver Side Rear Seat Belt Tensioner Igniter - N196- or Passenger Side Rear Seat Belt Tensioner Igniter - N197-
- Refer to Overview - Outer Rear Three-Point Seat Belt .
- Refer to Rear Three-Point Seat Belt, Removing and Installing .
- Center Rear Three-Point Seat Belt
- Seat Belt Latch
- LHD with Passenger Side Second Row Seat Belt Switch -F392-
- RHD Belt Latch -FX4- with Driver Side Second Row Seat Belt Switch -F390- and Center Second Row Seat Belt Switch -F391-.
- Refer to Overview - Rear Seat Belt Latch .
- Refer to Rear Seat Belt Latch, Removing and Installing .
- Seat Belt Latch
- LHD Belt Latch -FX4- with Driver Side Second Row Seat Belt Switch -F390- and Center Second Row Seat Belt Switch -F391-.
- RHD with Passenger Side Second Row Seat Belt Switch -F392-
- Refer to Overview - Rear Seat Belt Latch .
- Refer to Rear Seat Belt Latch, Removing and Installing .
