Overview - Rear Seat Belt Latch

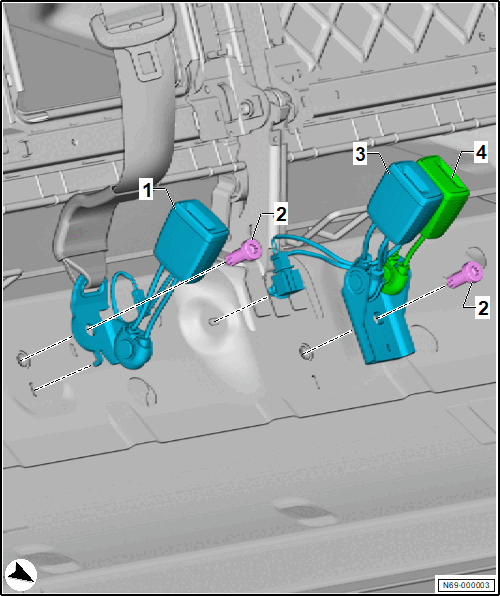

Fig 1: Exploded View Of Rear Seat Belt Latch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Rear Seat Belt Latch
- LHD with Passenger Side Second Row Seat Belt Switch -F392-
- RHD with Driver Side Second Row Seat Belt Switch -F390-
- Refer to Right Rear Seat Belt Latch, Removing and Installing .
Bolt
- 40 Nm
Center Rear Seat Belt Latch
- Depending on equipment/version
- With Center Second Row Seat Belt Switch -F391-
- Refer to Center Rear Seat Belt Latch, Removing and Installing .
Left Rear Seat Belt Latch
- LHD with Driver Side Second Row Seat Belt Switch -F390-
- RHD with Passenger Side Second Row Seat Belt Switch -F392-
- Refer to Rear Seat Belt Latch, Removing and Installing .
