Overview - Front Three-Point Seat Belt

The overview shows the left side of the vehicle as an example

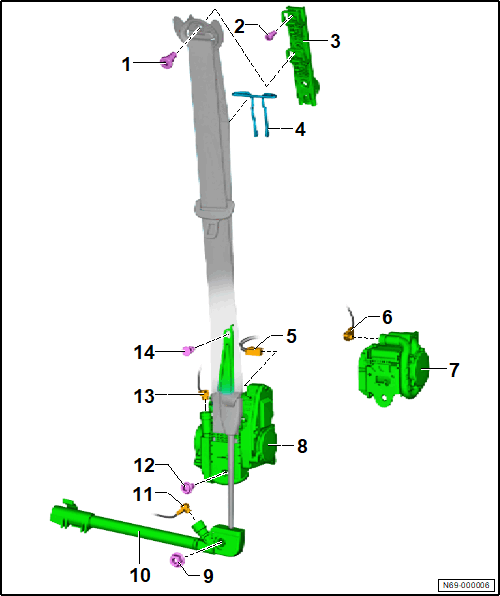

Fig 1: Exploded View Of Front Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 40 Nm
2. Bolt
   • 20 Nm
3. Seat Belt Height Adjuster
   • Refer to Seat Belt Height Adjuster, Removing and Installing  .
4. Front Seat Belt Guide
   • Refer to Front Seat Belt Guide, Removing and Installing  .
5. Connector
6. Connector
7. Front Three-Point Seat Belt, Base Version
   • Depending on equipment/version
   • With Driver Seat Belt Tensioner Igniter 1 -N153- or Front Passenger Seat Belt Tensioner Igniter 1 -N154-
   • Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING  .
8. Front Three-Point Seat Belt, Power Reversible Version
   • Depending on equipment/version
   • Left Front Seat Belt - NX10- or Right Front Seat Belt - NX11-
   • With Left Front Seat Belt Tensioner Control Module -J854- or Right Front Seat Belt Tensioner Control Module -J855-
   • With Driver Seat Belt Tensioner Igniter 1 -N153- or Front Passenger Seat Belt Tensioner Igniter 1 -N154-
   • Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING  .
9. Nut
   • 40 Nm
10. Front Belt End Fitting
    • With Driver Seat Belt Tensioner Igniter 2 -N297- or Front Passenger Seat Belt Tensioner Igniter 2 - N298-
    • Refer to Front Seat Belt Guide, Removing and Installing  .
11. Connector
12. Bolt
    • 40 Nm
13. Connector
14. Expanding Rivet
