Overview - Outer Rear Three-Point Seat Belt

The overview shows the left side of the vehicle as an example

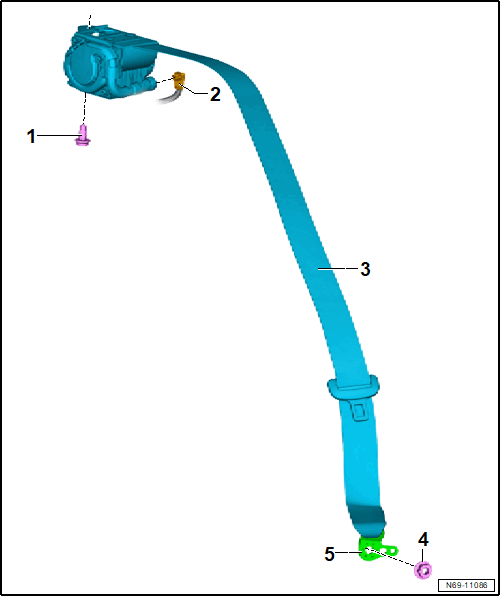

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 40 Nm
2. Connector
3. Outer Rear Three-Point Seat Belt
   • Depending on equipment/version
   • With Driver Side Rear Seat Belt Tensioner Igniter - N196- or Passenger Side Rear Seat Belt Tensioner Igniter - N197-
   • Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING
4. Nut
   • 40 Nm
5. Outer Rear Belt End Fitting
   • Refer to Outer Rear Belt End Fitting, Removing and Installing  .
