Overview - Valve Body

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

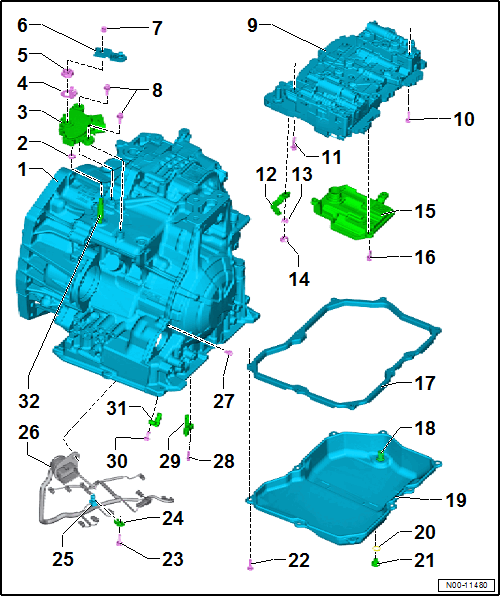

Fig 1: Exploded View Of Transmission Housing & Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission Housing
O-Ring
- Replace after removing
Multifunction Transmission Range Switch -F125-
- Removing and Installing. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .
- Adjusting. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, ADJUSTING .
Locking Plate
Nut
- 7 Nm
Gearshift Lever
- For the gearshift shaft
- On the outside of the multifunction transmission range switch
- Removing and Installing. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .
Nut
- 13 Nm
- With spring washer
Bolt
- 6 Nm
- Quantity: 2
Valve Body
- Removing and Installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
- Allocation. Refer to the appropriate Electronic Parts Information.
Bolt
- 8 Nm +90°
- Always replace the bolts.
- For fastening the valve body to the transmission
- Quantity 7, M6 X 27
Bolt
- 8 Nm +90°
- Always replace the bolts.
- For fastening the valve body to the transmission
- Quantity 7, M6 X 21
Gearshift Lever
- For the gearshift shaft
- inside, on the valve body
- Removing and Installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
Locking Plate
Nut
- 10 Nm
Transmission Fluid Screen
- Removing and Installing. Refer to TRANSMISSION FLUID SCREEN, REMOVING AND INSTALLING .
Bolt
- 11 Nm
- Quantity: 3
- For attaching the transmission fluid screen to the valve body
Seal
- With spacers (quantity: 8)
- Check before installing
- Replace a brittle, cracked or deformed seal
Overflow Pipe
- 2 Nm
- Remove in order to drain the ATF
Transmission Fluid Pan
- Removing and Installing. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .
Seal
- Always replace.
ATF Check Plug
- 25 Nm
Bolt
- 7 Nm
- Tighten the transmission fluid pan bolts diagonally and in several steps.
Bolt
- 11 Nm
Retaining Plate
Transmission Fluid Temperature Sensor -G93-
- Integrated in the wiring harness
- Removed together with the wiring harness
Wiring Harness for Sensor and Solenoid Valves
- With an O-ring on the connector; always replace the O-ring
- With Transmission Fluid Temperature Sensor -G93-
- Removing and Installing. Refer to SENSOR WIRING HARNESS AND SOLENOID VALVES, REMOVING AND INSTALLING .
- Allocation. Refer to the appropriate Electronic Parts Information.
Bolt
- 6 Nm
Bolt
- 7 Nm
Transmission Output Speed Sensor -G195-
- Removing and Installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
Bolt
- 6 Nm
Transmission Input Speed Sensor -G182-
- Removing and Installing. Refer to Transmission Input Speed Sensor -G182- AND Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
Gearshift Shaft
