Transmission Fluid Pan, Removing And Installing

Special tools and workshop equipment required

• Shop Crane - Drip Tray:VAS6208
  Fig 1: Identifying Drip Tray

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1783 - 2-10Nm:VAG1783
  Fig 2: Identifying Torque Wrench (2 to 10 Nm) VAG 1783

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission Fluid Pan, Removing

-- Remove the noise insulation under the transmission.

-- Place the Drip Tray or Used Oil Collection and Extraction Unit: SMN372500  underneath.

-- Remove the ATF check plug -A-.

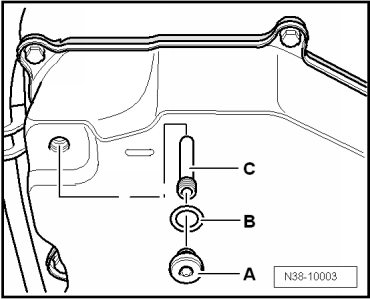

Fig 3: Identifying Overflow Tube, Check Plug And Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the overflow pipe -C- and drain any remaining ATF.

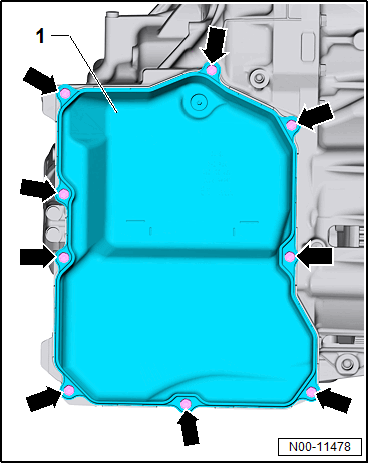

-- Loosen and remove the transmission fluid pan bolts -arrows- in a diagonal sequence.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the transmission fluid pan together with the transmission fluid pan gasket.

Transmission Fluid Pan, Installing

Install in reverse order of removal while noting the following:

-- Clean the two magnets in the oil pan depressions. Make sure the entire surface of the magnets touch the transmission fluid pan.

-- Check the gasket for damage and make sure all of the spacers (quantity: 8) are present.

Otherwise, replace the gasket.

-- Insert the transmission fluid pan with the gasket. Be sure not to pinch any lines while doing so.

-- Make sure the transmission fluid pan gasket is seated correctly.

-- Tighten the transmission fluid pan bolts -arrows- diagonally and in several steps to the tightening specification. Refer to OVERVIEW - VALVE BODY .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the overflow pipe -C- to the tightening specification. Refer to OVERVIEW - VALVE BODY .

Fig 4: Identifying Overflow Tube, Check Plug And Sealing Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the seal -B- for the ATF check plug -A-.

-- Only install the ATF check plug -A- with a new seal -B- hand-tight.

-- Fill the ATF, and check the ATF level and add ATF if necessary. Refer to ATF, DRAINING AND FILLING .

-- Install the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
