Front Bonded Rubber Bushing, Replacing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
GWWW42-10053Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

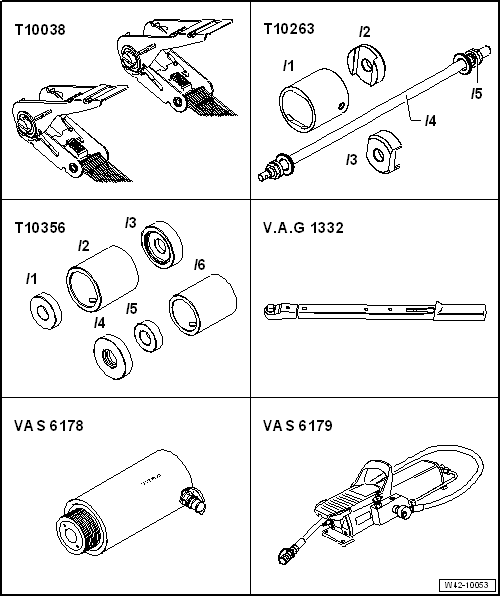

Special tools and workshop equipment required

Special tools and workshop equipment required

NOTE:

If a bonded rubber bushing is faulty, then the bonded rubber bushing on the opposite side must also be replaced. Refer to the appropriate Electronic Parts Information for the allocation.

Check the other bearing before switching out a defected bonded rubber bushing.

If there are any tears or other visible damages, replace the bonded rubber bushing.

To replace the bonded rubber bushing, the subframe must be lowered either at the front or at the rear. It is not necessary to remove the subframe.

Identify the installation position to the subframe before removing the bonded rubber bushing.

Pressing Out Bonded Rubber Bushing, Front

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Remove the spring. Refer to SPRING, REMOVING AND INSTALLING .

-- Remove the rear muffler from the exhaust system. Refer to OVERVIEW - MUFFLER - 2.0L , OVERVIEW - MUFFLER - 3.6L .

-- Remove the bolt for the tie rod on the wheel bearing housing.

-- Push the tie rod downward and install the bolt again.

-- Push the tie rod as far as possible toward the rear.

-- Remove the clamps -1- on both sides of the vehicle.

GWWA42-10581Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Do not disconnect the brake line.

-- If equipped, remove the underbody trim panel on the trailing arm mounting bracket. Refer to COMPONENT LOCATION OVERVIEW - UNDERBODY TRIM PANELS .

-- Secure both sides of the vehicle on the hoist lifting arms using the :T10038  .

GWWN00-11038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Tensioning Strap:T10038
WARNING:

The vehicle could slide off the hoist if it is not secured.

-- Secure the subframe. Refer to SUBFRAME, SECURING .

-- Mark the installation location of the bonded rubber bushing on the subframe with a felt-tip pen -1-.

Fig 2: Identifying Mark -1- On Subframe In Middle Of Recess On Bonded Rubber Mounting -2-
GWWN42-10651Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Apply the mark -1- on the subframe in the middle of the recess on the bonded rubber mounting -2-.

-- Use a screwdriver -2- to pry off the anti-twist mechanism -1- near the bonded rubber bushing retaining tabs.

Fig 3: Removing Anti-Twist Mechanism Using Screwdriver
GWWN42-10650Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the subframe using the :VAS6931  or :VAG1383A  approximately 100 mm.

-- Unclip the brake line -1- from the clip -arrow- on the left side.

Fig 4: Identifying Brake Line -1- And Clip -Arrow- On Left Side
GWWN42-10648Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

This will destroy the clip, so it will have to be replaced.

-- Use the special tools as shown.

Fig 5: Identifying Special Tools Used
GWWN42-10652Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  Hydraulic Press - Rear Subframe Bushing Tool Kit - Nut:T10263/5

2 -  Subframe Bushing Assembly Tool Kit-Press Piece:T10356/1

3 -  Subframe

4 -  Subframe Bushing Assembly Tool Kit-Pipe:T10356/2  , side with shoulder points to subframe

5 -  Bearing Installer - Wheel Hub/Bearing Kit - Gripping Device:T10205/1

6 -  Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit Pressure Head:T10205/13

7 -  Hydraulic Press - Rear Subframe Bushing Tool Kit - Nut:T10263/5

8 -  Hydraulic Press - Rear Subframe Bushing Tool Kit-Threaded Rod:T10263/4

-- Pretension the special tools.

-- Press out the bonded rubber bushing.

NOTE:

When removing the bonded rubber bushing, the outer race collar on the bushing is sheared off. There is a loud crack when this happens.

After removing the bonded rubber bushing, it must be removed from the :T10356/2  by tapping lightly with a hammer.

Press In on the Front Bonded Rubber Bushing

-- Apply a line -1- on the vertical rib of the bonded rubber bushing to help mount.

Fig 6: Identifying Line -1- On Vertical Rib Of Bonded Rubber Bushing
GWWA42-10687Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply mounting paste to the outer edge of the bonded rubber bushing.

-- Insert the special tools with bonded rubber bushing into the subframe as shown.

Fig 7: Inserting Special Tools With Bonded Rubber Bushing Into Subframe
GWWN42-10675Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  Hydraulic Press - Rear Subframe Bushing Tool Kit - Nut:T10263/5

2 -  Subframe Bushing Assembly Tool Kit-Thrust piece:T10356/7  - the mark -A- points to the subframe

3 -  Subframe

4 -  Adjust the bonded rubber bushing to the marks made previously (the marks need to align)

5 -  Assembly Tool - Bushing:T10356/8  - the flattened sides need to fit into the cover of the bonded rubber bushing -arrows-.

6 -  Bearing Installer - Wheel Hub/Bearing Kit - Gripping Device:T10205/1

7 -  Hydraulic Press:VAS6178  with Bearing Installer - Wheel Hub/Bearing Kit Pressure Head:T10205/13

8 -  Hydraulic Press - Rear Subframe Bushing Tool Kit - Nut:T10263/5

9 -  Hydraulic Press - Rear Subframe Bushing Tool Kit - Threaded Rod:T10263/4

-- Check the position of the bonded rubber bushing and, if necessary, align and pre-tighten special tools with bonded rubber bushing.

NOTE:

Make sure that the hose from the :VAS6178  to the :VAS6179  runs between the trailing arm and the fuel tank when installed.

Make sure that the bonded rubber bushing is not bent when installing. Otherwise the outer ring could become damaged.

-- Operate the pump to press in the bonded rubber bushing until the collar is positioned on the subframe >>without play<<.

Further installation is the reverse order of removal.

Tightening Specifications
