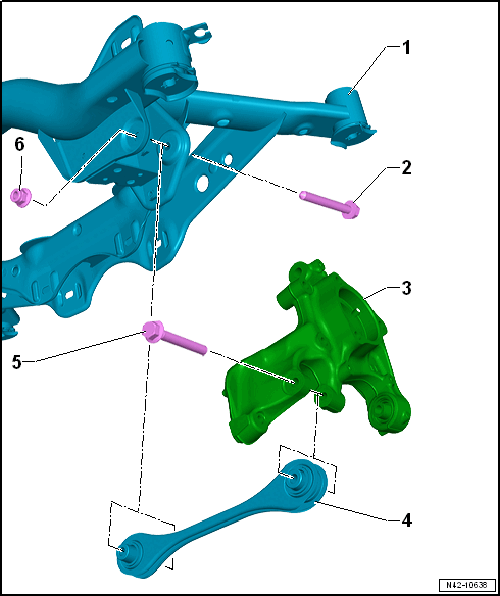

Overview - Tie Rod
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Subframe
- Bolt
- Replace after removing.
- Wheel Bearing Housing
- Different versions for FWD and AWD. Refer to the appropriate Electronic Parts Information.
- Tie Rod
- Removing and installing. Refer to TIE ROD, REMOVING AND INSTALLING .
- Bolt
- 70 Nm + 180°
- Replace after removing.
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING, REAR AXLE .
- Nut
- 70 Nm + 180°
- Replace after removing.
