SUBFRAME, Securing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locating Pins:T10096

Fig 1: Locating Pins
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Jack:VAS6931

Fig 2: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

:T10096 , Installing

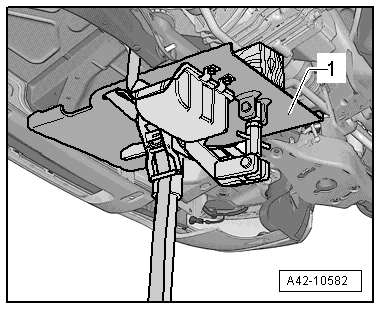

-- Move the :VAS6931 with the Universal Mounting Plate -1- under the subframe and secure it using the tensioning strap.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To secure the subframe, the :T10096 must be installed at the positions -1- one after the other on both sides of the vehicle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove a hex bolt -1- from both sides.

NOTE:

For clarity only the left side of the vehicle is shown.

-- Install the :T10096 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

:T10096 may only be tightened to a maximum of 20 Nm, otherwise the threads on the locating pins will be damaged.

-- Replace the bolts on the subframe one after the other with the :T10096 -1- on both sides and tighten to 20 Nm.

The subframe position is now secured.
