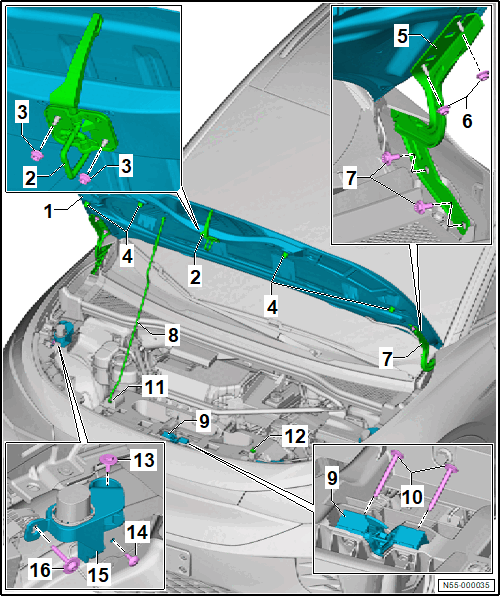

Overview - Hood
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- Refer to Hood, Removing and Installing .
- Refer to Hood, Adjusting .
- Striker
- Refer to Striker, Removing and Installing .
- Refer to Striker, Adjusting .
- Nut
- Quantity: 2
- 9 Nm
- Adjusting Buffer
- Quantity: 4
- Refer to ADJUSTING BUFFERS, ADJUSTING .
- Hinge
- Refer to Hinge, Removing and Installing .
- Refer to Hinge, Adjusting .
- Nut
- Quantity: 4
- 20 Nm
- Bolt
- Quantity: 4
- 20 Nm
- Support Rod
- Refer to Support Rod, Removing and Installing .
- Hood Latch
- With Engine Hood Contact Switch -F266-
- Refer to Hood, Removing and Installing .
- Refer to Hood, Adjusting .
- Bolt
- Quantity: 2
- Replace after removing
- 12 Nm
- Rubber Grommet for Support Rod
- Bracket for Support Rod
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- Quantity: 2
- 2 Nm
- Mount for Hood
- Quantity: 2
- Bolt
- Quantity: 2
- 4.5 Nm
