Hinge, Adjusting

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Adjustment Gauge: 3371

The procedure is shown for the right side of the vehicle as an example.

Tip

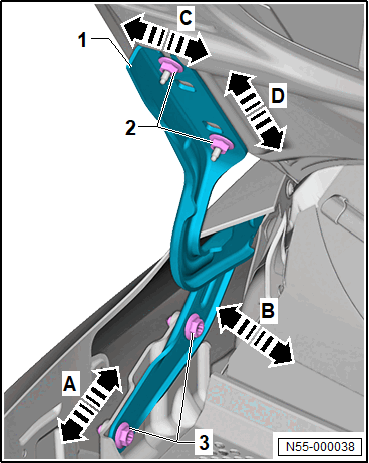

The hood can be centered in the -direction of the arrow C- and in the -direction of the arrow D- between the fenders.

-- Loosen the nuts -2- to adjust the hinge -1- in the -direction of arrow C- or the -direction of arrow D-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

The height of the hood can be adjusted in the -direction of the arrow B- between the fenders.

Tip

The hood can be adjusted in the -direction of the arrow A- to the front bumper cover.

-- Loosen the bolts -3- to adjust the hinge -1- in the -direction of arrow A- or the -direction of arrow B-.

-- Check the gap dimensions using the Gauge - Gap Adjustment: 3371 . Note the BODY FRONT when doing this.

-- Apply the corrosion protection on the hinges -1-, nuts -2- and bolts -3-. Refer to CORROSION PROTECTION FOR BODY, ATTACHED AND WELDED PARTS .

-- Refer to ADJUSTING BUFFERS, ADJUSTING .

Tightening Specifications

Refer to Overview - Hood .
