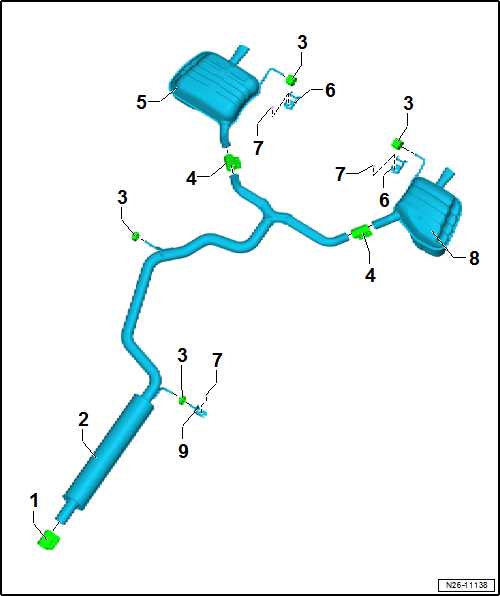

Overview - Muffler
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Clamping Sleeve
- 30 Nm
- Refer to Clamping Sleeve Installation Position .
- Center Muffler
- Can be replaced separately
- Original equipment as one unit with the rear muffler
- Refer to Muffler, Removing and Installing, Vehicles with Two Rear Mufflers .
- Refer to Exhaust Pipes/Mufflers, Disconnecting .
- Refer to Exhaust System, Installing without Tension .
- Retaining Loop
- Clamping Sleeve
- 30 Nm
- Refer to Clamping Sleeve Installation Position .
- Left Rear Muffler
- Can be replaced separately
- Original equipment is one unit with the center muffler
- Refer to Muffler, Removing and Installing, Vehicles with Two Rear Mufflers .
- Refer to Exhaust Pipes/Mufflers, Disconnecting .
- Refer to Exhaust System, Installing without Tension .
- Mount
- Bolt
- 20 Nm
- Right Rear Muffler
- Original equipment is one unit with the center muffler
- Can be replaced separately
- Refer to Muffler, Removing and Installing, Vehicles with Two Rear Mufflers .
- Refer to Exhaust Pipes/Mufflers, Disconnecting .
- Refer to Exhaust System, Installing without Tension .
- Mount
