Exhaust System, Installing Without Tension

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Requirement

The exhaust system must be set up in cold condition.

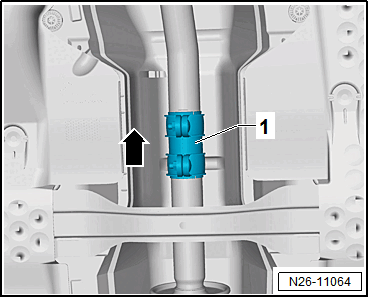

-- Loosen the screws for the front clamp -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the exhaust system forward, until distance -a- is reached at the forwardmost retaining loop and hold it.

Fig 1: Identifying Tail Pipe Aligning

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Distance -a-. Refer to Check and Adjustment Values .

-- Tighten the front clamping sleeve. Refer to Clamping Sleeve Installation Position .
