Overview - Seat Pan, Standard Seat, Ergo Comfort Seat

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview shows the driver side as an example.

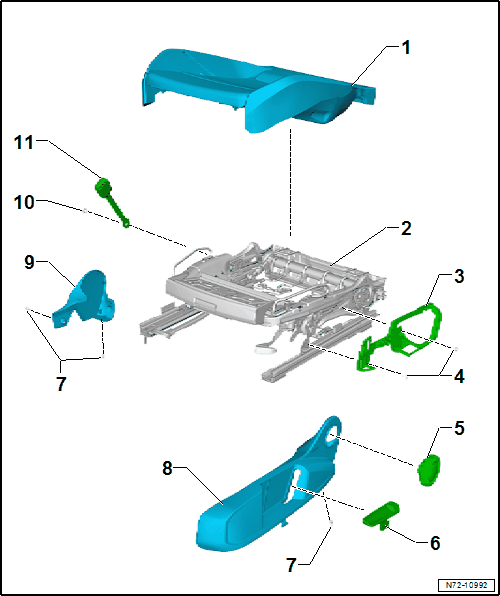

Fig 1: Exploded View Of Seat Pan, Standard Seat, Ergo Comfort Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cushion
- Seat Pan Cover and Padding, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Seat pan cover and cushion, separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
Seat Pan
- Depending on the vehicle equipment:
  - Seat angle adjuster. Refer to OVERVIEW - SEAT ANGLE ADJUSTER, MANUAL ADJUSTMENT .
  - Seat depth adjuster. Refer to OVERVIEW - SEAT DEPTH ADJUSTER .
  - Seat height adjuster. Refer to OVERVIEW - SEAT HEIGHT ADJUSTMENT; MANUAL SEAT HEIGHT ADJUSTMENT .
- When using the seat frame for a Standard seat, remove the Sport bracket.
Bracket
- For the sill-side seat trim panel
- Removing and Installing. Refer to SEAT TRIM PANEL BRACKET, REMOVING AND INSTALLING .
Bolts
- 8 Nm
Hand Wheel
- For the manual backrest adjustment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Handle
- Overview. Refer to OVERVIEW - SEAT HEIGHT ADJUSTMENT; MANUAL SEAT HEIGHT ADJUSTMENT .
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
Expanding Rivet
Seat Trim Panel
- Sill-side
- The design depends on the vehicle equipment
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING .
Seat Trim Panel
- Tunnel-side
- Removing and Installing. Refer to TUNNEL-SIDE SEAT TRIM, REMOVING AND INSTALLING .
Bolt
- Replace every time it is loosened
- 40 Nm
Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
