Overview - Seat Depth Adjuster

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The overview shows the driver side as an example.

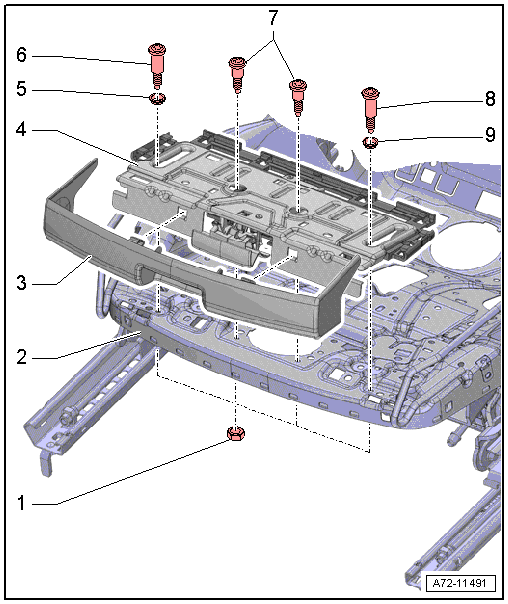

Fig 1: Exploded View Of Seat Pan Seat Depth Adjuster Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- Quantity: 4
- Replace after removing
Seat Pan
Trim
- For the seat depth adjustment
- Press on until it engages audibly
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Seat Depth Adjuster
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Bushing
Bolt
- Replace after removing
- Use locking fluid when installing the bolt. Refer to the appropriate Electronic Parts Information for the locking fluid.
- 4 Nm
Bolts
- Replace after removing
- Use locking fluid when installing the bolt. Refer to the appropriate Electronic Parts Information for the locking fluid.
- 4 Nm
Bolt
- Replace after removing
- Use locking fluid when installing the bolt. Refer to the appropriate Electronic Parts Information for the locking fluid.
- 4 Nm
Bushing
