Overview - Seat Angle Adjuster, Manual Adjustment

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The overview shows the driver side as an example.

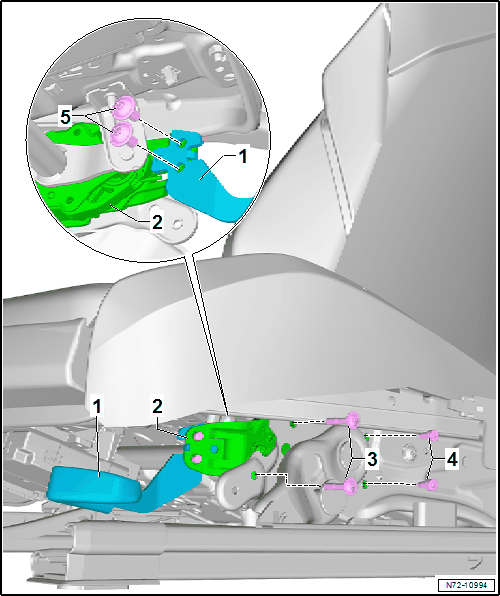

GWWN72-10994Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Handle
    • For seat angle adjuster
  2. Seat Angle Adjuster
    • The seat angle adjuster cannot be replaced separately. The seat frame must be replaced if the seat angle adjuster is faulty.
  3. Bolts
    • 10 Nm
  4. Bolts
    • 10 Nm
  5. Bolts
    • 8 Nm
