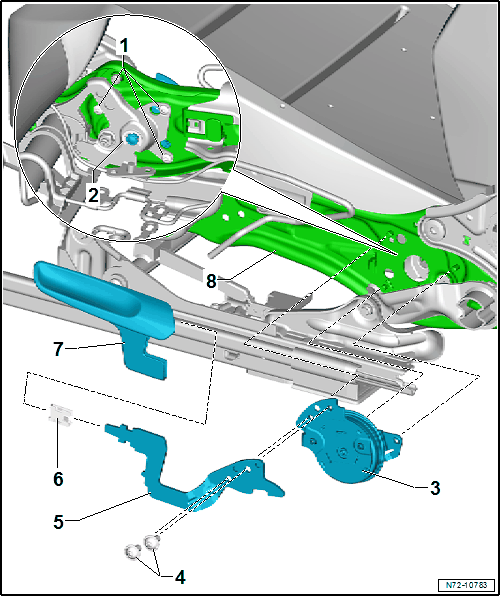

Overview - Seat Height Adjustment; Manual Seat Height Adjustment
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the driver side as an example.
- Bolts
- 10 Nm
- Lock Washer
- Replace after removing
- Seat Height Adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL SEAT HEIGHT ADJUSTMENT .
- Bolts
- 8 Nm
- Lever for Seat Height Adjustment
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL SEAT HEIGHT ADJUSTMENT .
- Clip
- Check for secure fit
- Seat Height Adjustment Handle
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Seat Pan
- Overview. Refer to OVERVIEW - SEAT PAN .
