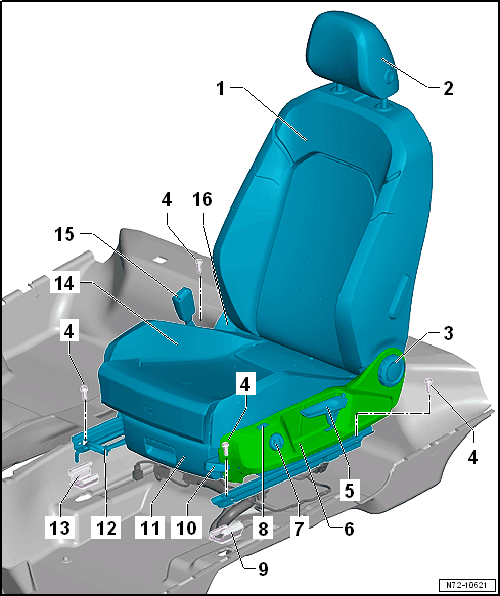

Overview - Front Seat, Standard Seat, Ergo Comfort Seat
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview shows the driver side as an example.
- Backrest
- Overview. Refer to OVERVIEW - FRONT BACKREST .
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Hand Wheel
- For the manual backrest adjustment
- Depending on the vehicle equipment
- Removing and Installing. Refer to BACKREST ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 40 Nm
- Seat Height Adjustment
- Overview. Refer to OVERVIEW - SEAT HEIGHT ADJUSTMENT; MANUAL SEAT HEIGHT ADJUSTMENT .
- Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, MANUAL SEAT HEIGHT ADJUSTMENT .
- Seat Height Adjustment Handle, Removing and Installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Sill-Side Seat Trim Panel
- Removing and Installing. Refer to SILL-SIDE SEAT TRIM PANEL, REMOVING AND INSTALLING .
- Lumbar Support Adjustment Switch
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Depending on the vehicle equipment
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
- Lumbar support, removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING .
- Massage Button
- Driver Side Massage Function Button -E670-
- Front Passenger Massage Function Button -E671-
- Depending on the vehicle equipment
- Cover
- For sill-side seat rail
- Installed in rear and front
- Quantity: 2
- Loosen and remove from the seat rail by carefully releasing the retaining tabs without breaking them using a screwdriver.
- Carefully push onto the seat rail until it engages audibly
- Seat Angle Adjuster
- Depending on the vehicle equipment
- Overview. Refer to OVERVIEW - SEAT ANGLE ADJUSTER, MANUAL ADJUSTMENT .
- Storage Compartment
- Not equipped on this model
- Seat Forward/Back Adjustment Handle
- Removal: using a rubber or plastic mallet disconnect from the handle mount
- Installation: hit the handle mount all the way back on using a rubber mallet. Do not damage the surface while doing so.
- After removal replace with new part
- Cover
- For tunnel side seat rail
- Quantity: 2
- Installed in rear and front
- Loosen and remove from the seat rail by carefully releasing the retaining tabs without breaking them using a screwdriver.
- Carefully push onto the seat rail until it engages audibly
- Seat Pan
- Dependent on vehicle equipment with seat depth adjuster. Refer to OVERVIEW - SEAT DEPTH ADJUSTER .
- Overview. Refer to OVERVIEW - SEAT PAN .
- Seat Belt Latch
- Removing and Installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
- Tunnel-Side Seat Trim Panel
- Removing and Installing. Refer to TUNNEL-SIDE SEAT TRIM, REMOVING AND INSTALLING .
