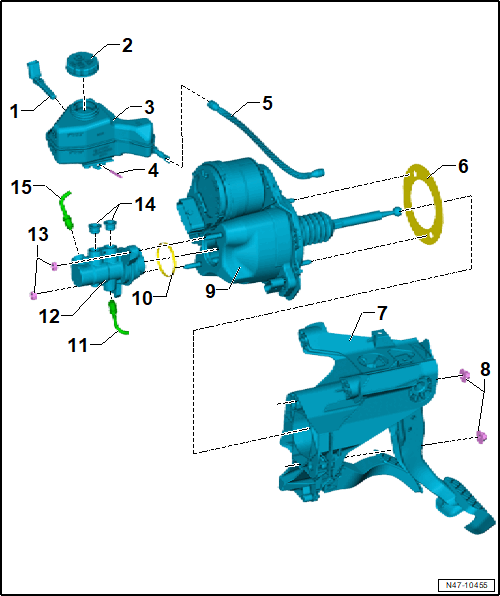

Overview - Brake Booster/Brake Master Cylinder, LHD
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Fluid Level Warning Switch -F34-
- Removing and Installing. Refer to Brake Fluid Level Warning Switch -F34-, REMOVING AND INSTALLING .
- Cap
- Brake Fluid Reservoir
- Locking Pin
- Return Hose
- For vehicles with manual transmission
- Seal
- For the brake booster
- Check for damages
- Mounting Bracket with Brake Pedal
- Overview. Refer to OVERVIEW - BRAKE PEDAL, LHD .
- Removing and Installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING, LHD VEHICLE .
- Nut
- Always replace if removed
- 25 Nm
- Brake Booster
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
The following components are integrated in the brake booster.
- Brake Pedal Position Sensor -G100-
- Brake Pedal Position Sensor 2 -G836-
- Power Supply Sensor 1 -G730-
- Power Supply Sensor 2 -G731-
- Brake Booster Voltage Sensor -G822-
- Brake Booster Temperature Sensor 1 -G838-
- Brake Booster Temperature Sensor 2 -G839-
- Brake Booster Motor Position Sensor -G840-
- Brake Booster Control Module -J539-
- Electro-Mechanical Brake Booster Motor -V548-
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
- Seal
- Replace
- Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- with an M12 x 1 thread.
- 14 Nm
- Brake Master Cylinder
- Cannot be serviced. Replace as a complete unit if malfunctioning.
- Removing and Installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING .
- Nut
- Replace after removing
- 22 Nm
- Plugs
- To install, coat with brake fluid
- Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- with an M12 x 1 thread.
- 14 Nm
