Brake Fluid Level Warning Switch -F34-, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Removing

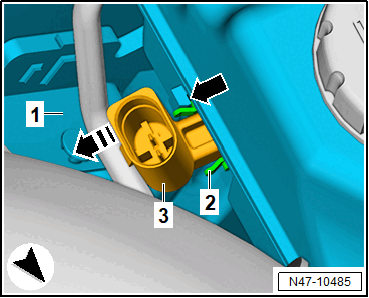

-- Push the locking mechanism -2- on the locking tab -arrow- on the brake fluid reservoir inward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Brake Fluid Level Warning Switch -F34- -3- in the direction of the -arrow-.

Installing:

Push the Brake Fluid Level Warning Switch -F34- -3- in the brake fluid reservoir and engage.
