Overview - Ribbed Belt Drive

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

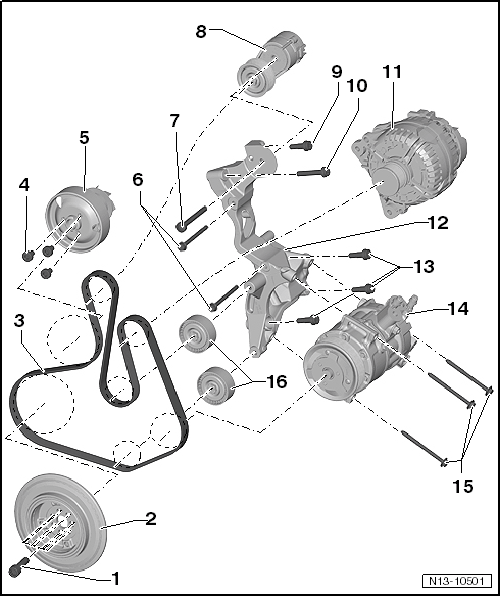

Fig 1: Exploded View Of Ribbed Belt Drive Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vibration Damper Bolts
- 60 Nm + ¹ /₂ turn (180°)
Vibration Damper
- Removing and Installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
- Ribbed Belt, Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
Vibration Damper Bolt
- Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
Bolts for Belt Pulley to Coolant Pump
- 20 Nm
Coolant Pump
- Removing and Installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
Generator Bolts
- 25 Nm
Tensioner Bolt
- 50 Nm
Tensioner
- Removing and Installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
Sub-Assembly Bracket Fitting Bolt
- 25 Nm
Bolts
- For sub-assembly bracket
- 25 Nm
Generator
- Removing and installing. Refer to GENERATOR, REMOVING AND INSTALLING .
Sub-Assembly Bracket
- Removing and Installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .
- Two alignment sleeves
- Make sure that the seating between the sub-assembly bracket and the A/C compressor is correct
Bolt
- For sub-assembly bracket
- The left lower bolt is a fitting bolt
- 25 Nm
A/C Compressor
- Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
M8 x 100 Bolt
- Quantity: 3
- 23 Nm
Idler Roller
- 40 Nm
