Ribbed Belt TENSIONER, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

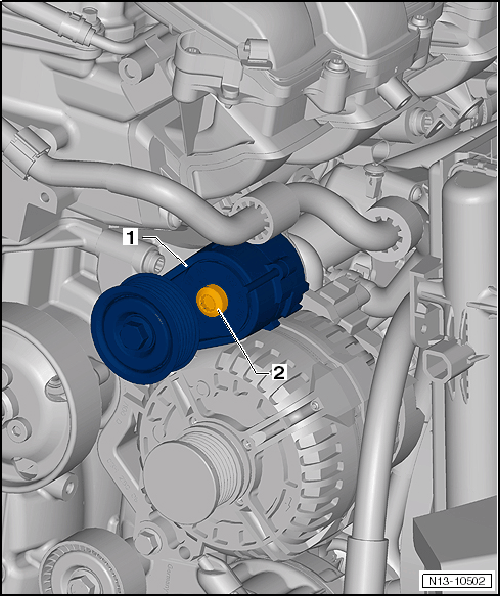

-- Remove the bolt -2- and remove the tensioner -1-.
-- Install in reverse order of removal.
Tightening Specification
| Component | Nm | |
|---|---|---|
| Tensioner to sub-assembly bracket | 50 | |
