Overview - Front Power Seat

The overview shows the left side of the vehicle as an example

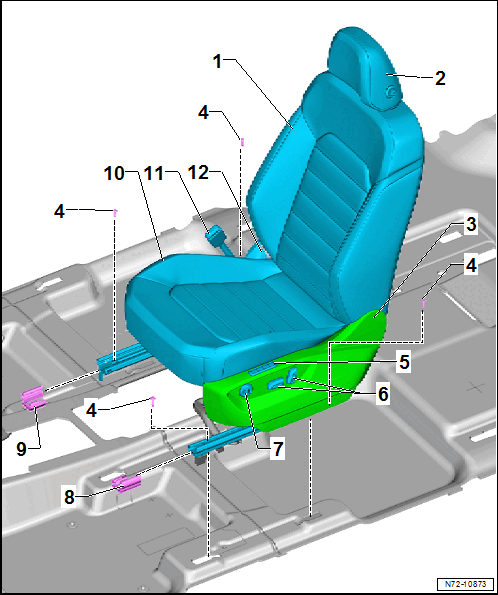

Fig 1: Exploded View Of Front Seat, Power Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Backrest
   • Refer to Overview - Front Backrest  .
   • Refer to Front Backrest, Removing and Installing  .
2. Headrest
   • Refer to Overview - Headrest  .
   • Refer to Headrest, Removing and Installing  .
3. Outer Seat Trim Panel
   • Refer to OUTER SEAT TRIM PANEL, REMOVING AND INSTALLING
4. Bolt
   • 40 Nm
   • Quantity: 4
5. Driver Seat Memory Settings Control Head -E464- / Front Passenger Seat Memory Settings Control Head -E465-
   • Refer to DRIVER/FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD E464/E465, REMOVING AND INSTALLING  .
6. Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
   • Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD E470/E471, REMOVING AND INSTALLING  .
7. Driver Seat Lumbar Support Adjustment Switch -E176-, Front Passenger Seat Lumbar Support Adjustment Switch -E177-
   • Refer to DRIVER AND FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCHES E176/E177, REMOVING AND INSTALLING  .
8. Seat Rail Cover
   • Quantity: 4
9. Seat Depth Adjuster
   • Refer to Overview - Seat Depth Adjuster  .
   • Refer to Seat Depth Adjuster, Removing and Installing  .
10. Seat Pan
    • Refer to Overview - Seat Pan  .
11. Front Seat Belt Latch
    • Refer to Overview - Front Seat Belt Latch .
    • Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
12. Inner Seat Trim Panel
    • Refer to INNER SEAT TRIM PANEL, REMOVING AND INSTALLING
