Overview - Seat Depth Adjuster

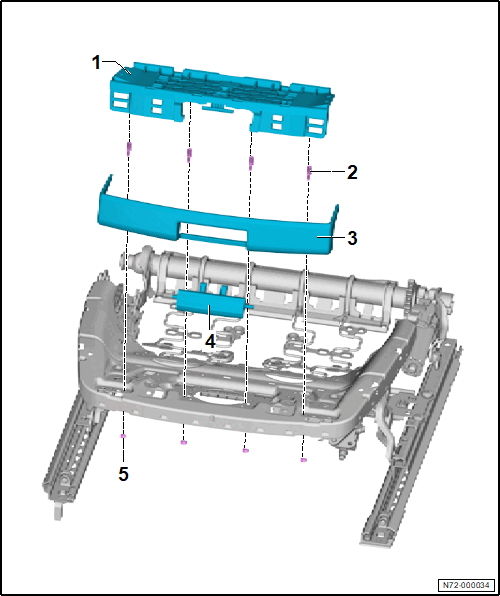

Fig 1: Exploded View Of Seat Depth Adjuster

GWWN72-000034

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Depth Adjuster Carrier Plate
- Refer to Seat Depth Adjuster, Removing and Installing .
Bolt
- 6 Nm
- Quantity: 4
Seat Depth Adjuster Trim
- Refer to Seat Depth Adjuster, Removing and Installing .
Seat Depth Adjuster Handle
- Refer to Seat Depth Adjuster, Removing and Installing .
Nut
- 6 Nm
- Replace after removing
- Quantity: 4
