Overview - Headrest

The overview shows the left side of the vehicle as an example

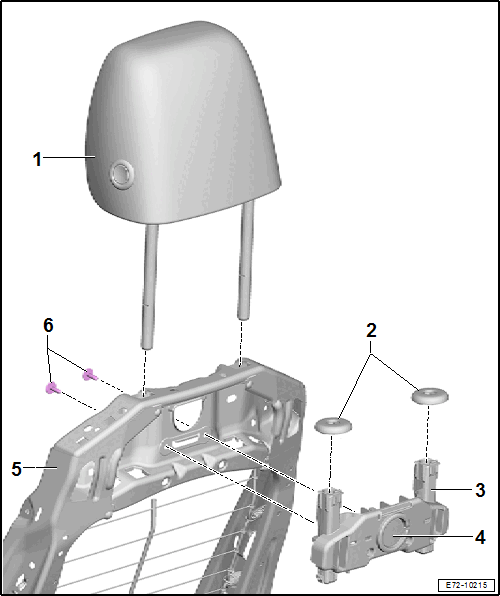

Fig 1: Exploded View Of Headrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Headrest
   • Refer to Headrest, Removing and Installing  .
2. Cover
   • Quantity: 2
3. Headrest Guide
   • Refer to Headrest Guide, Removing and Installing  .
4. Headrest Release Button
5. Backrest Frame
6. Bolt
   • 2 Nm
   • Quantity: 2
