Overview - Front Backrest

The overview shows the left side of the vehicle as an example

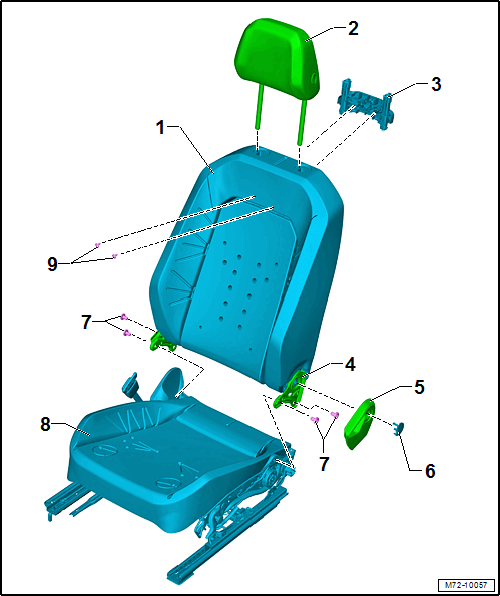

Fig 1: Exploded View Of Front Backrest, Standard Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Backrest
   • Refer to Front Backrest, Removing and Installing  .
2. Headrest
   • Depending on equipment/version
   • Refer to Overview - Headrest  .
   • Refer to Headrest, Removing and Installing  .
3. Headrest Guide
   • Depending on equipment/version
   • Refer to Overview - Headrest  .
   • Refer to Headrest Guide, Removing and Installing  .
4. Backrest Frame
5. Release Lever
   • For backrest adjustment. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .
6. Cap
   • For backrest adjustment release lever
7. Bolt
   • Replace after removing
   • Tightening specification and sequence. Refer to Fig 2.
   • Quantity: 4
8. Seat Pan
   • Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER
9. Bolts
   • 2 Nm
   • For headrest guide

Tightening Specifications and Sequence

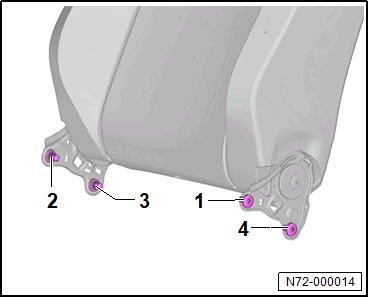

Fig 2: Front Backrest Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
