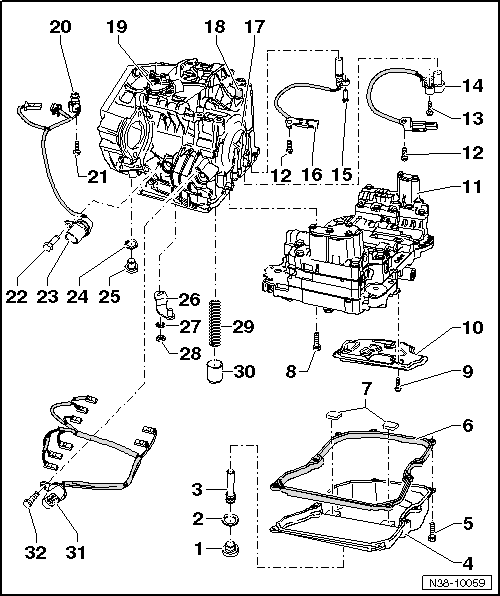

Overview - Valve Body: Notes
WARNING: This page is about a different variant/trim than selected.
- ATF Check Plug
- 27 Nm
- Seal
- Replace after removing
- Overflow Pipe
- 2 Nm
- Remove in order to drain the ATF
- Transmission Fluid Pan
- Removing and Installing. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Tighten the transmission fluid pan bolts diagonally and in several steps.
- Seal
- With spacers (quantity: 8)
- Check before installing
- Replace a brittle, cracked or deformed seal
- Magnet
- Quantity: 2; in depressions in the transmission fluid pan
- Clean before installing the transmission fluid pan
- Bolt
- 8 Nm +90°
- For fastening the valve body to the transmission
- Quantity 12; with different lengths. Refer to Installing, Bolt Lengths and Component Location on Valve Body .
- Replace after removing
- Bolt
- 11 Nm
- Quantity: 3
- For attaching the transmission fluid screen to the valve body
- Transmission Fluid Screen
- Removing and Installing. Refer to TRANSMISSION FLUID SCREEN, REMOVING AND INSTALLING .
- Valve Body
- Removing and Installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
- Solenoid valve designation. Refer to WIRE ROUTING, CONNECTORS AND BRACKET ON VALVE BODY
- Bolt
- 7 Nm
- Bolt
- 6 Nm
- Transmission Input Speed Sensor -G182-
- Removing and Installing. Refer to Transmission Input Speed Sensor -G182-, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Transmission Output Speed Sensor -G195-
- Removing and Installing. Refer to Transmission Output Speed Sensor -G195-, REMOVING AND INSTALLING .
- Transmission Housing
- Illustrated here without the ATF cooler
- Bleed Cap
- Multifunction Transmission Range Switch -F125-
- Removing and Installing. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, REMOVING AND INSTALLING .
- Adjusting. Refer to MULTIFUNCTION TRANSMISSION RANGE SWITCH, ADJUSTING .
- Transmission Fluid Temperature Sensor -G93-
- Integrated in the sensor wiring harness - item - ) OVERVIEW - VALVE BODY - Sensor Wiring Harness
- Tightening Specification. Refer to Tightening Specifications .
- Wire routing. Refer to WIRE ROUTING, CONNECTORS AND BRACKET ON VALVE BODY .
- Removing and Installing. Refer to WIRING HARNESS FOR SENSORS, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Bolt
- 6 Nm
- Sensor Wiring Harness
- With Transmission Fluid Temperature Sensor -G93-
- For the Transmission Input Speed Sensor -G182-
- For the Transmission Output Speed Sensor -G195-
- Always replace the gasket on the connector housing
- Wire routing. Refer to WIRE ROUTING, CONNECTORS AND BRACKET ON VALVE BODY .
- Removing and Installing. Refer to WIRING HARNESS FOR SENSORS, REMOVING AND INSTALLING .
- Seal
- If equipped, replace after removing
- ATF Drain Plug
- 40 Nm
- Not installed on all transmissions
- Lever
- For the selector shaft
- Removing and Installing. Refer to VALVE BODY, REMOVING AND INSTALLING .
- Washer
- Nut
- 10 Nm
- Installation position: the centering collar faces the washer. Refer to -Item - ) OVERVIEW - VALVE BODY - Washer
- Spring
- Damper Piston
- Solenoid Valve Wiring Harness
- Always replace the gasket on the connector housing
- Wiring harness routing. Refer to WIRE ROUTING, CONNECTORS AND BRACKET ON VALVE BODY .
- Removing and Installing. Refer to WIRING HARNESS FOR SOLENOID VALVES, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
