Tightening Specifications

WARNING: This page is about a different variant/trim than selected.

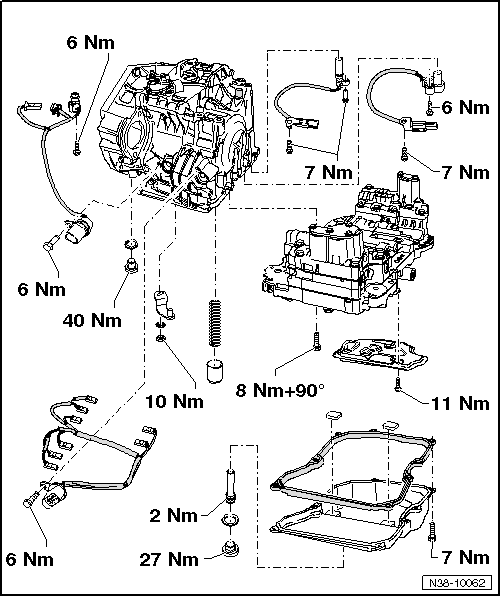

Fig 1: Exploded View Of Valve Body And Transmission With Torque Specifications
GWWN38-10062Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
