Overview - Drive Axle: Overview

WARNING: This page is about a different variant/trim than selected.

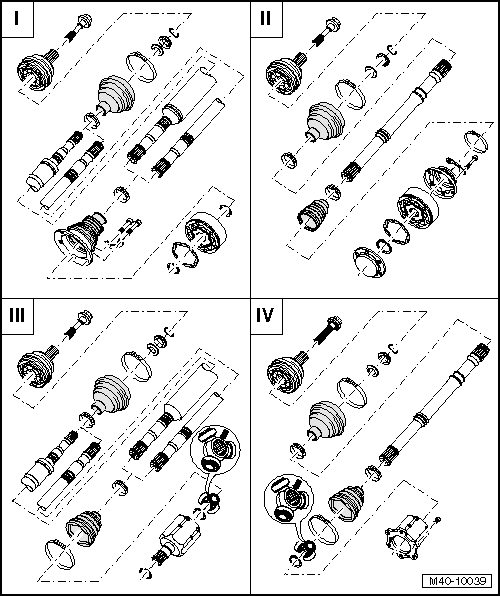

Fig 1: Drive Axles Overview
GWWM40-10039Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. I -

    Refer to OVERVIEW - DRIVE AXLE, CV JOINT VL 100

  2. II -

    Refer to OVERVIEW - DRIVE AXLE, CV JOINT VL 107

  3. III -

    Refer to OVERVIEW - DRIVE AXLE, TRIPLE ROLLER JOINT AAR2600I

  4. IV -

    Refer to OVERVIEW - DRIVE AXLE, TRIPLE ROLLER JOINT AAR3300I

Difference of Drive Axles in Installed Condition

  VL100 VL107 AAR2600i AAR3300i
Diameter of inner joint in mm 100 107 - -
Cover between inner joint and flange shaft - X - -
Inner joint inserted into transmission (automatic transmission only) - - X -
