Input Shaft, Output Shafts, Differential, And Shift Rods
WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

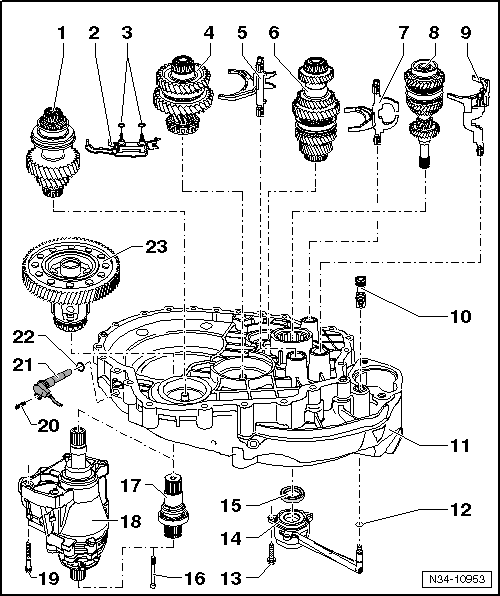

- Reverse Gear Output Shaft
- Overview, refer to REVERSE GEAR OUTPUT SHAFT OVERVIEW .
- Installed position, refer to Fig 2.
- Reverse Gear Selector Fork
- Installed position, refer to Fig 2.
- O-ring
- Installed in some transmissions.
- Discontinued shortly after the start of production.
- 1st and 2nd Gear Output Shaft
- Overview, refer to 1ST AND 2ND GEAR OUTPUT SHAFT OVERVIEW .
- Installed position, refer to Fig 2.
- Selector Shaft with Selector Fork for 1st and 2nd Gear
- Installed position, refer to Fig 2.
- 3rd and 4th Gear Output Shaft
- Overview, 3RD AND 4TH GEAR OUTPUT SHAFT OVERVIEW .
- Installed position, refer to Fig 2.
- Selector Shaft with Selector Fork for 3rd and 4th Gear

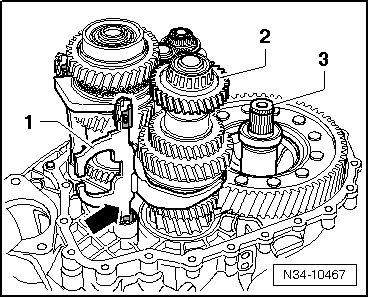

- Pay attention to the installed position, refer to Figure.
- Input Shaft
- Overview, refer to INPUT SHAFT OVERVIEW .
- With selector gears for 5th and 6th gear.
- Installed position, refer to Fig 2.
- Always replace the grooved ball bearing -item 16- in INPUT SHAFT OVERVIEW on the input shaft.
- Selector Shaft and Selector Fork for 5th and 6th Gear
- Installed position, refer to Fig 2.
- Breather Assembly
- Attaches to the clutch slave cylinder -14-.
- Clutch Housing
- Disassembly and assembly, refer to CLUTCH HOUSING .
- O-ring
- Installed on the line connection.
- Lubricate with brake fluid before installing.
- Bolt
- Quantity: 3
- Removing and installing, see -item 4- in CLUTCH RELEASE MECHANISM OVERVIEW .
- Clutch Slave Cylinder with Release Bearing
- Removing and installing, refer to CLUTCH RELEASE MECHANISM OVERVIEW .
- Input Shaft Seal
- Removing and installing, refer to INPUT SHAFT SEAL .
- Bolt
- 35 Nm
- Right Stub Shaft with Spring
- Not available in the US/Canadian market. Only for vehicles with All Wheel Drive (AWD).
- Bevel Box
- Not available in the US/Canadian market. Only for vehicles with AWD.
- Bolt
- See -item 23- in DIFFERENTIAL OVERVIEW .
- Quantity: 4
- Always replace
- Bolt
- 12 Nm
- Trip Recorder Sensor -G75-
- May be installed in some transmissions.
- O-ring
- Differential
- Overview, refer to DIFFERENTIAL OVERVIEW .

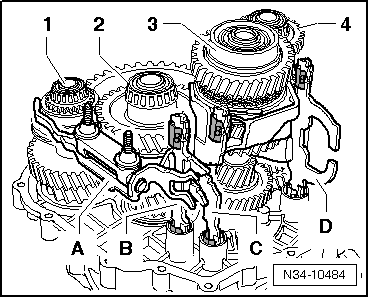

1 - Reverse gear output shaft
2 - 1st and 2nd gear output shaft
3 - Input shaft
4 - 3rd and 4th gear output shaft
A - Selector rod with selector fork, reverse gear
B - Selector rod with selector fork for 1st/2nd gear
C - Selector rod with selector fork for 5th/6th gear
D - Selector rod with selector fork for 3rd/4th gear
