Overview - Differential
WARNING: This page is about a different variant/trim than selected.
NOTE:
Secure the transmission on the assembly stand. Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .
Before installing, warm the inner race/tapered roller bearing to approximately 100 °C (212 °F) with Inductive Heater :VAS6414 .
Adjust the differential when replacing the tapered roller bearing, differential housing, transmission housing or clutch housing. Refer to DIFFERENTIAL, ADJUSTING .
The items -18 to 23- are no longer individual replacement parts on some transmissions.

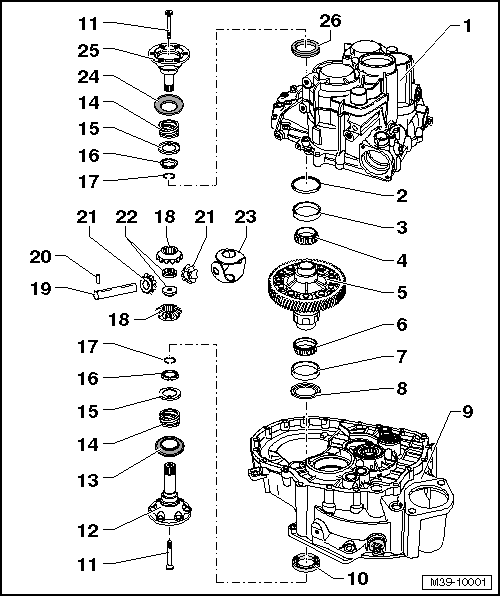

- Transmission Housing
- Shim
- For the differential
- Selecting thickness. Refer to DIFFERENTIAL, ADJUSTING .
- Outer Race/Tapered Roller Bearing
- Removing. Refer to Removing Outer Race/Tapered Roller Bearing .
- Installing. Refer to Installing Outer Race/Tapered Roller Bearing .
- Inner Race / Tapered Roller Bearing
- Removing. Refer to Removing Inner Race / Tapered Roller Bearing .
- Installing. Refer to Installing Inner Race / Tapered Roller Bearing .
- Differential
- With riveted final drive gear wheel
- Inner Race / Tapered Roller Bearing
- Removing. Refer to Removing Inner Race / Tapered Roller Bearing .
- Installing. Refer to Installing Inner Race / Tapered Roller Bearing .
- Outer Race/Tapered Roller Bearing
- Removing. Refer to Removing Outer Race/Tapered Roller Bearing .
- Installing. Refer to Installing Outer Race/Tapered Roller Bearing .
- Washer
- Installation position: the collar on the inner diameter faces the right flange shaft seal.
- For allocation refer to the parts information.
- Clutch Housing
- Seal
- For the right flange shaft
- For allocation refer to the parts information.
- Replace when the transmission is installed. Refer to RIGHT SEAL, REPLACING .
- Bolt
- 33 Nm
- Install with the threaded piece. Refer to -item ) Threaded Piece-.
- Right Flange Shaft
- Ring
- Pry the ring off the right flange shaft with a screwdriver
- Installed position: the depression points away from threaded holes in flanged shaft
- Install the ring all the way by hand.
- The ring must lock into the flange shaft.
- Flange Shaft Pressure Spring
- Installed behind the flange shaft
- Thrust Washer
- Installed position: the collar faces toward spring, and tab, if equipped, faces toward tapered ring
- Tapered Ring
- Installed position: ball toward the differential housing
- Circlip
- Holds the tapered ring, the thrust washer and the pressure spring when the flange shaft is removed
- Large Differential Bevel Gear
- Availability
- Installing. Refer to Differential Bevel Gears .
- Differential Bevel Gear Axle
- Availability.
- Remove using a drift
- Installing. Refer to Differential Bevel Gears .
- Adapter Sleeve
- Availability.
- To secure the differential bevel gear axle
- Removing. Refer to Removing The Spring Pin .
- Installing. Refer to Installing The Spring Pin .
- Small Differential Bevel Gear
- Availability.
- Installing. Refer to Differential Bevel Gears .
- Threaded Piece
- Availability.
- Installing. Refer to Differential Bevel Gears .
- Thrust Washer Union
- Availability.
- Install with transmission fluid
- Ring
- Pry the ring off the left flange shaft with a screwdriver
- Installed position: the depression points away from threaded holes in flanged shaft
- Install the ring all the way by hand.
- The ring must lock into the flange shaft.
- Left Flange Shaft
- Seal
- For the left flange shaft
- For allocation refer to the parts information.
- Replace when the transmission is installed. Refer to LEFT SEAL, REPLACING .
