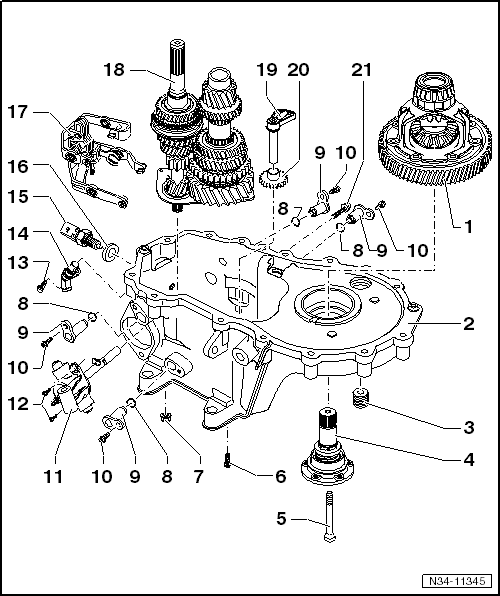

Overview - Input Shaft, Output Shafts, Differential, Gearshift Rods
WARNING: This page is about a different variant/trim than selected.
- Differential
- Disassembling and Assembling. Refer to DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING .
- Transmission Housing
- Servicing. Refer to TRANSMISSION HOUSING AND CLUTCH HOUSING .
- Outer race/tapered roller bearing seat adapted in transmission housing
- Oil Drain Plug
- Tightening specification: Refer to Figure
- Flange Shaft with Pressure Spring
- Removing and Installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Assembling. Refer to DIFFERENTIAL, DISASSEMBLING AND ASSEMBLING .
- Bolt
- 25 Nm
- Bolt
- 5 Nm +90°
- Replace after removing
- Self-locking
- For securing bearing mount with grooved ball bearing for input and output shaft -item 18-
- Hex Nut
- 23 Nm
- Replace after removing
- For shift mechanism -item 17-
- Self-locking
- O-ring
- Replace after removing
- Pivot Pin
- Bolt
- 5 Nm +90°
- Replace after removing
- Gearshift Shaft with Gearshift Cover
- (Shift unit)
- Servicing. Refer to SHIFT UNIT, SERVICING .
- Bolt
- 5 Nm +90°
- Replace after removing
- Bolt
- 6 Nm
- Transmission Neutral Position Sensor -G701-
- For vehicles with the Start/Stop System
- Back-Up Lamp Switch -F4-
- 20 Nm
- Short after series introduction of transmission with permanent seal
- Seal
- If present, replace after removing
- Not installed on all transmissions
- Selector Mechanism
- Shift Forks
- Servicing. Refer to SHIFT FORKS, SERVICING .
- Input Shaft with Output Shaft and Bearing Mount/Grooved Ball Bearing
- If bearing mount is removed from transmission housing, it must always be replaced
- Bearing Mount, Removing and Installing -item 8- OVERVIEW - INPUT SHAFT
- Input Shaft, Disassembling and Assembling. Refer to INPUT SHAFT, DISASSEMBLING AND ASSEMBLING
- Output Shaft, Disassembling and Assembling. Refer to OUTPUT SHAFT, DISASSEMBLING AND ASSEMBLING
- Reverse Gear Axle
- Reverse Drive Gear
- Bolt
- 25 Nm +45°
- Replace after removing
- For securing reverse gear axle
